Manual integration of material-pbr into develop

examples/models/models_cubicmap.c

@@ -25,11 +25,13 @@ int main()

     Image image = LoadImage("resources/cubicmap.png");      // Load cubicmap image (RAM)
     Texture2D cubicmap = LoadTextureFromImage(image);       // Convert image to texture to display (VRAM)
-    Model map = LoadCubicmap(image);                        // Load cubicmap model (generate model from image)
+
+    Mesh mesh = GenMeshCubicmap(image, VectorOne());
+    Model model = LoadModelFromMesh(mesh, false);

     // NOTE: By default each cube is mapped to one part of texture atlas
     Texture2D texture = LoadTexture("resources/cubicmap_atlas.png");    // Load map texture
-    map.material.texDiffuse = texture;                      // Set map diffuse texture
+    model.material.maps[TEXMAP_DIFFUSE].tex = texture;                  // Set map diffuse texture

     Vector3 mapPosition = { -16.0f, 0.0f, -8.0f };          // Set model position

@@ -56,7 +58,7 @@ int main()

             Begin3dMode(camera);

-                DrawModel(map, mapPosition, 1.0f, WHITE);
+                DrawModel(model, mapPosition, 1.0f, WHITE);

             End3dMode();

@@ -76,7 +78,7 @@ int main()
     //--------------------------------------------------------------------------------------
     UnloadTexture(cubicmap);    // Unload cubicmap texture
     UnloadTexture(texture);     // Unload map texture
-    UnloadModel(map);           // Unload map model
+    UnloadModel(model);         // Unload map model

     CloseWindow();              // Close window and OpenGL context
     //--------------------------------------------------------------------------------------

examples/models/models_material_pbr.c

@@ -0,0 +1,185 @@
+/*******************************************************************************************
+*
+*   raylib [models] example - PBR material
+*
+*   This example has been created using raylib 1.8 (www.raylib.com)
+*   raylib is licensed under an unmodified zlib/libpng license (View raylib.h for details)
+*
+*   Copyright (c) 2017 Ramon Santamaria (@raysan5)
+*
+********************************************************************************************/
+
+#include "raylib.h"
+#include "raymath.h"
+
+#define         MAX_LIGHTS            4         // Max lights supported by shader
+#define         LIGHT_DISTANCE        3.5f      // Light distance from world center
+#define         LIGHT_HEIGHT          1.0f      // Light height position
+
+typedef enum {
+    LIGHT_DIRECTIONAL,
+    LIGHT_POINT
+} LightType;
+
+typedef struct {
+    bool enabled;
+    LightType type;
+    Vector3 position;
+    Vector3 target;
+    Color color;
+    int enabledLoc;
+    int typeLoc;
+    int posLoc;
+    int targetLoc;
+    int colorLoc;
+} Light;
+
+int lightsCount = 0;                     // Current amount of created lights
+
+Light CreateLight(int type, Vector3 pos, Vector3 targ, Color color, Shader shader);         // Defines a light and get locations from PBR shader
+void UpdateLightValues(Shader shader, Light light);                                         // Send to PBR shader light values
+
+int main()
+{
+    // Initialization
+    //--------------------------------------------------------------------------------------
+    int screenWidth = 800;
+    int screenHeight = 450;
+
+    SetConfigFlags(FLAG_MSAA_4X_HINT);  // Enable Multi Sampling Anti Aliasing 4x (if available)
+    InitWindow(screenWidth, screenHeight, "raylib [models] example - pbr material");
+
+    // Define the camera to look into our 3d world
+    Camera camera = {{ 4.0f, 4.0f, 4.0f }, { 0.0f, 0.5f, 0.0f }, { 0.0f, 1.0f, 0.0f }, 45.0f };
+
+    // Load model and PBR material
+    Model model = LoadModel("resources/pbr/trooper.obj");
+
+    Texture2D texHDR = LoadTexture("resources/pinetree.hdr");
+    model.material = LoadMaterialPBR(texHDR, (Color){ 255, 255, 255, 255 }, 1.0f, 1.0f);
+
+    SetMaterialTexture(&model.material, TEXMAP_ALBEDO, LoadTexture("resources/pbr/trooper_albedo.png"));
+    SetMaterialTexture(&model.material, TEXMAP_NORMAL, LoadTexture("resources/pbr/trooper_normals.png"));
+    SetMaterialTexture(&model.material, TEXMAP_METALNESS, LoadTexture("resources/pbr/trooper_metalness.png"));
+    SetMaterialTexture(&model.material, TEXMAP_ROUGHNESS, LoadTexture("resources/pbr/trooper_roughness.png"));
+    SetMaterialTexture(&model.material, TEXMAP_OCCLUSION, LoadTexture("resources/pbr/trooper_ao.png"));
+
+    // Set textures filtering for better quality
+    SetTextureFilter(model.material.maps[TEXMAP_ALBEDO].tex, FILTER_BILINEAR);
+    SetTextureFilter(model.material.maps[TEXMAP_NORMAL].tex, FILTER_BILINEAR);
+    SetTextureFilter(model.material.maps[TEXMAP_METALNESS].tex, FILTER_BILINEAR);
+    SetTextureFilter(model.material.maps[TEXMAP_ROUGHNESS].tex, FILTER_BILINEAR);
+    SetTextureFilter(model.material.maps[TEXMAP_OCCLUSION].tex, FILTER_BILINEAR);
+
+    int renderModeLoc = GetShaderLocation(model.material.shader, "renderMode");
+    SetShaderValuei(model.material.shader, renderModeLoc, (int[1]){ 0 }, 1);
+
+    SetCameraMode(camera, CAMERA_ORBITAL);  // Set an orbital camera mode
+
+    // Define lights attributes
+    Light lights[MAX_LIGHTS] = { CreateLight(LIGHT_POINT, (Vector3){ LIGHT_DISTANCE, LIGHT_HEIGHT, 0.0f }, (Vector3){ 0.0f, 0.0f, 0.0f }, (Color){ 255, 0, 0, 255 }, model.material.shader),
+    CreateLight(LIGHT_POINT, (Vector3){ 0.0f, LIGHT_HEIGHT, LIGHT_DISTANCE }, (Vector3){ 0.0f, 0.0f, 0.0f }, (Color){ 0, 255, 0, 255 }, model.material.shader),
+    CreateLight(LIGHT_POINT, (Vector3){ -LIGHT_DISTANCE, LIGHT_HEIGHT, 0.0f }, (Vector3){ 0.0f, 0.0f, 0.0f }, (Color){ 0, 0, 255, 255 }, model.material.shader),
+    CreateLight(LIGHT_DIRECTIONAL, (Vector3){ 0.0f, LIGHT_HEIGHT*2.0f, -LIGHT_DISTANCE }, (Vector3){ 0.0f, 0.0f, 0.0f }, (Color){ 255, 0, 255, 255 }, model.material.shader) };
+
+    SetTargetFPS(60);                       // Set our game to run at 60 frames-per-second
+    //--------------------------------------------------------------------------------------
+
+    // Main game loop
+    while (!WindowShouldClose())            // Detect window close button or ESC key
+    {
+        // Update
+        //----------------------------------------------------------------------------------
+        UpdateCamera(&camera);              // Update camera
+
+        // Send to material PBR shader camera view position
+        float cameraPos[3] = { camera.position.x, camera.position.y, camera.position.z };
+        SetShaderValue(model.material.shader, model.material.shader.locs[LOC_VECTOR_VIEW], cameraPos, 3);
+        //----------------------------------------------------------------------------------
+
+        // Draw
+        //----------------------------------------------------------------------------------
+        BeginDrawing();
+
+            ClearBackground(RAYWHITE);
+
+            Begin3dMode(camera);
+
+                DrawModel(model, VectorZero(), 1.0f, WHITE);
+
+                DrawGrid(10, 1.0f);
+
+            End3dMode();
+
+            DrawFPS(10, 10);
+
+        EndDrawing();
+        //----------------------------------------------------------------------------------
+    }
+
+    // De-Initialization
+    //--------------------------------------------------------------------------------------
+    UnloadModel(model);         // Unload skybox model
+
+    CloseWindow();              // Close window and OpenGL context
+    //--------------------------------------------------------------------------------------
+
+    return 0;
+}
+
+// Defines a light and get locations from PBR shader
+Light CreateLight(int type, Vector3 pos, Vector3 targ, Color color, Shader shader)
+{
+    Light light = { 0 };
+
+    if (lightsCount < MAX_LIGHTS)
+    {
+        light.enabled = true;
+        light.type = type;
+        light.position = pos;
+        light.target = targ;
+        light.color = color;
+
+        char enabledName[32] = "lights[x].enabled\0";
+        char typeName[32] = "lights[x].type\0";
+        char posName[32] = "lights[x].position\0";
+        char targetName[32] = "lights[x].target\0";
+        char colorName[32] = "lights[x].color\0";
+        enabledName[7] = '0' + lightsCount;
+        typeName[7] = '0' + lightsCount;
+        posName[7] = '0' + lightsCount;
+        targetName[7] = '0' + lightsCount;
+        colorName[7] = '0' + lightsCount;
+
+        light.enabledLoc = GetShaderLocation(shader, enabledName);
+        light.typeLoc = GetShaderLocation(shader, typeName);
+        light.posLoc = GetShaderLocation(shader, posName);
+        light.targetLoc = GetShaderLocation(shader, targetName);
+        light.colorLoc = GetShaderLocation(shader, colorName);
+
+        UpdateLightValues(shader, light);
+        lightsCount++;
+    }
+
+    return light;
+}
+
+// Send to PBR shader light values
+void UpdateLightValues(Shader shader, Light light)
+{
+    // Send to shader light enabled state and type
+    SetShaderValuei(shader, light.enabledLoc, (int[1]){ light.enabled }, 1);
+    SetShaderValuei(shader, light.typeLoc, (int[1]){ light.type }, 1);
+
+    // Send to shader light position values
+    float position[3] = { light.position.x, light.position.y, light.position.z };
+    SetShaderValue(shader, light.posLoc, position, 3);
+
+    // Send to shader light target position values
+    float target[3] = { light.target.x, light.target.y, light.target.z };
+    SetShaderValue(shader, light.targetLoc, target, 3);
+
+    // Send to shader light color values
+    float diff[4] = { (float)light.color.r/(float)255, (float)light.color.g/(float)255, (float)light.color.b/(float)255, (float)light.color.a/(float)255 };
+    SetShaderValue(shader, light.colorLoc, diff, 4);
+}

examples/models/models_skybox.c

@@ -0,0 +1,89 @@
+/*******************************************************************************************
+*

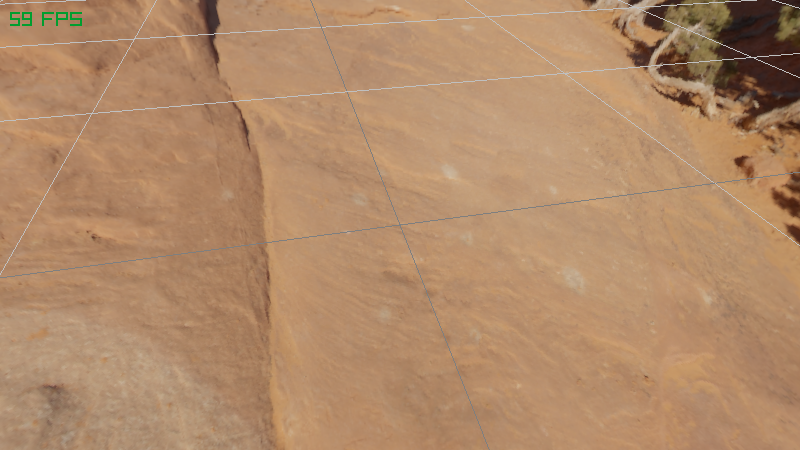

+*   raylib [models] example - Skybox loading and drawing
+*
+*   This example has been created using raylib 1.8 (www.raylib.com)
+*   raylib is licensed under an unmodified zlib/libpng license (View raylib.h for details)
+*
+*   Copyright (c) 2017 Ramon Santamaria (@raysan5)
+*
+********************************************************************************************/
+
+#include "raylib.h"
+#include "raymath.h"
+
+int main()
+{
+    // Initialization
+    //--------------------------------------------------------------------------------------
+    int screenWidth = 800;
+    int screenHeight = 450;
+
+    InitWindow(screenWidth, screenHeight, "raylib [models] example - skybox loading and drawing");
+
+    // Define the camera to look into our 3d world
+    Camera camera = {{ 1.0f, 1.0f, 1.0f }, { 0.0f, 0.0f, 0.0f }, { 0.0f, 1.0f, 0.0f }, 45.0f };
+
+    // Load skybox model and shader
+    Mesh cube = GenMeshCube(1.0f, 1.0f, 1.0f);
+    Model skybox = LoadModelFromMesh(cube, false);
+    skybox.material.shader = LoadShader("resources/shaders/skybox.vs", "resources/shaders/skybox.fs");
+
+    Texture2D texHDR = LoadTexture("resources/pinetree.hdr");
+    skybox.material.maps[TEXMAP_CUBEMAP].tex = rlGenMapCubemap(texHDR, 512);
+    SetShaderValuei(skybox.material.shader, GetShaderLocation(skybox.material.shader, "environmentMap"), (int[1]){ TEXMAP_CUBEMAP }, 1);
+
+    // Get skybox shader locations
+    skybox.material.shader.locs[LOC_MATRIX_PROJECTION] = GetShaderLocation(skybox.material.shader, "projection");
+    skybox.material.shader.locs[LOC_MATRIX_VIEW] = GetShaderLocation(skybox.material.shader, "view");
+
+    // Then before rendering, configure the viewport to the actual screen dimensions
+    Matrix proj = MatrixPerspective(60.0, (double)GetScreenWidth()/(double)GetScreenHeight(), 0.01, 1000.0);
+    MatrixTranspose(&proj);
+    SetShaderValueMatrix(skybox.material.shader, skybox.material.shader.locs[LOC_MATRIX_PROJECTION], proj);
+
+    SetCameraMode(camera, CAMERA_ORBITAL);  // Set an orbital camera mode
+
+    SetTargetFPS(60);                       // Set our game to run at 60 frames-per-second
+    //--------------------------------------------------------------------------------------
+
+    // Main game loop
+    while (!WindowShouldClose())            // Detect window close button or ESC key
+    {
+        // Update
+        //----------------------------------------------------------------------------------
+        UpdateCamera(&camera);              // Update camera
+
+        Matrix view = MatrixLookAt(camera.position, camera.target, camera.up);
+        SetShaderValueMatrix(skybox.material.shader, skybox.material.shader.locs[LOC_MATRIX_VIEW], view);
+        //----------------------------------------------------------------------------------
+
+        // Draw
+        //----------------------------------------------------------------------------------
+        BeginDrawing();
+
+            ClearBackground(RAYWHITE);
+
+            Begin3dMode(camera);
+
+                DrawModel(skybox, VectorZero(), 1.0f, RED);
+
+                DrawGrid(10, 1.0f);
+
+            End3dMode();
+
+            DrawFPS(10, 10);
+
+        EndDrawing();
+        //----------------------------------------------------------------------------------
+    }
+
+    // De-Initialization
+    //--------------------------------------------------------------------------------------
+    UnloadModel(skybox);        // Unload skybox model
+
+    CloseWindow();              // Close window and OpenGL context
+    //--------------------------------------------------------------------------------------
+
+    return 0;
+}

examples/shaders/shaders_model_shader.c

@@ -38,7 +38,7 @@ int main()
                                "resources/shaders/glsl330/grayscale.fs");   // Load model shader

     dwarf.material.shader = shader;             // Set shader effect to 3d model
-    dwarf.material.texDiffuse = texture;        // Bind texture to model
+    dwarf.material.maps[TEXMAP_DIFFUSE].tex = texture;        // Bind texture to model

     Vector3 position = { 0.0f, 0.0f, 0.0f };    // Set model position


src/core.c

@@ -809,7 +809,7 @@ void EndDrawing(void)
         {
             // Get image data for the current frame (from backbuffer)
             // NOTE: This process is very slow... :(
-            unsigned char *screenData = rlglReadScreenPixels(screenWidth, screenHeight);
+            unsigned char *screenData = rlReadScreenPixels(screenWidth, screenHeight);
             GifWriteFrame(screenData, screenWidth, screenHeight, 10, 8, false);

             free(screenData);   // Free image data
@@ -994,10 +994,10 @@ Ray GetMouseRay(Vector2 mousePosition, Camera camera)
     MatrixTranspose(&matView);

 //#define USE_RLGL_UNPROJECT
-#if defined(USE_RLGL_UNPROJECT)     // OPTION 1: Use rlglUnproject()
+#if defined(USE_RLGL_UNPROJECT)     // OPTION 1: Use rlUnproject()

-    Vector3 nearPoint = rlglUnproject((Vector3){ deviceCoords.x, deviceCoords.y, 0.0f }, matProj, matView);
-    Vector3 farPoint = rlglUnproject((Vector3){ deviceCoords.x, deviceCoords.y, 1.0f }, matProj, matView);
+    Vector3 nearPoint = rlUnproject((Vector3){ deviceCoords.x, deviceCoords.y, 0.0f }, matProj, matView);
+    Vector3 farPoint = rlUnproject((Vector3){ deviceCoords.x, deviceCoords.y, 1.0f }, matProj, matView);

 #else   // OPTION 2: Compute unprojection directly here

@@ -1201,7 +1201,7 @@ void SetConfigFlags(char flags)
 void TakeScreenshot(const char *fileName)
 {
 #if defined(PLATFORM_DESKTOP) || defined(PLATFORM_RPI)
-    unsigned char *imgData = rlglReadScreenPixels(renderWidth, renderHeight);
+    unsigned char *imgData = rlReadScreenPixels(renderWidth, renderHeight);
     SavePNG(fileName, imgData, renderWidth, renderHeight, 4); // Save image as PNG
     free(imgData);


src/models.c

@@ -76,9 +76,6 @@ static Mesh LoadOBJ(const char *fileName);      // Load OBJ mesh data
 static Material LoadMTL(const char *fileName);  // Load MTL material data
 #endif

-static Mesh GenMeshHeightmap(Image image, Vector3 size);
-static Mesh GenMeshCubicmap(Image cubicmap, Vector3 cubeSize);
-
 //----------------------------------------------------------------------------------
 // Module Functions Definition
 //----------------------------------------------------------------------------------
@@ -587,110 +584,32 @@ void DrawGizmo(Vector3 position)
     rlPopMatrix();
 }

-// Load mesh from file
-Mesh LoadMesh(const char *fileName)
-{
-    Mesh mesh = { 0 };
-
-#if defined(SUPPORT_FILEFORMAT_OBJ)
-    if (IsFileExtension(fileName, ".obj")) mesh = LoadOBJ(fileName);
-#else
-    TraceLog(LOG_WARNING, "[%s] Mesh fileformat not supported, it can't be loaded", fileName);
-#endif
-
-    if (mesh.vertexCount == 0) TraceLog(LOG_WARNING, "Mesh could not be loaded");
-    else rlglLoadMesh(&mesh, false);  // Upload vertex data to GPU (static mesh)
-
-    // TODO: Initialize default mesh data in case loading fails, maybe a cube?
-
-    return mesh;
-}
-
-// Load mesh from vertex data
-// NOTE: All vertex data arrays must be same size: vertexCount
-Mesh LoadMeshEx(int vertexCount, float *vData, float *vtData, float *vnData, Color *cData)
-{
-    Mesh mesh = { 0 };
-
-    mesh.vertexCount = vertexCount;
-    mesh.triangleCount = vertexCount/3;
-    mesh.vertices = vData;
-    mesh.texcoords = vtData;
-    mesh.texcoords2 = NULL;
-    mesh.normals = vnData;
-    mesh.tangents = NULL;
-    mesh.colors = (unsigned char *)cData;
-    mesh.indices = NULL;
-
-    rlglLoadMesh(&mesh, false);     // Upload vertex data to GPU (static mesh)
-
-    return mesh;
-}
-
-// Load model from file
+// Load model from files (mesh and material)
 Model LoadModel(const char *fileName)
 {
     Model model = { 0 };

     model.mesh = LoadMesh(fileName);
     model.transform = MatrixIdentity();
-    model.material = LoadDefaultMaterial();
-
-    return model;
-}
-
-// Load model from mesh data
-Model LoadModelFromMesh(Mesh data, bool dynamic)
-{
-    Model model = { 0 };
-
-    model.mesh = data;
-
-    rlglLoadMesh(&model.mesh, dynamic);  // Upload vertex data to GPU
-
-    model.transform = MatrixIdentity();
-    model.material = LoadDefaultMaterial();
+    model.material = LoadMaterialDefault();

     return model;
 }

-// Load heightmap model from image data
-// NOTE: model map size is defined in generic units
-Model LoadHeightmap(Image heightmap, Vector3 size)
+// Load model from generated mesh
+Model LoadModelFromMesh(Mesh mesh, bool dynamic)
 {
     Model model = { 0 };
-
-    model.mesh = GenMeshHeightmap(heightmap, size);
-
-    rlglLoadMesh(&model.mesh, false);  // Upload vertex data to GPU (static model)
-
-    model.transform = MatrixIdentity();
-    model.material = LoadDefaultMaterial();
-
-    return model;
-}
-
-// Load cubes-based map model from image data
-Model LoadCubicmap(Image cubicmap)
-{
-    Model model = { 0 };
-
-    model.mesh = GenMeshCubicmap(cubicmap, (Vector3){ 1.0f, 1.5f, 1.0f });
-
-    rlglLoadMesh(&model.mesh, false);  // Upload vertex data to GPU (static model)
-
+
+    rlLoadMesh(&mesh, dynamic);
+
+    model.mesh = mesh;
     model.transform = MatrixIdentity();
-    model.material = LoadDefaultMaterial();
+    model.material = LoadMaterialDefault();

     return model;
 }

-// Unload mesh from memory (RAM and/or VRAM)
-void UnloadMesh(Mesh *mesh)
-{
-    rlglUnloadMesh(mesh);
-}
-
 // Unload model from memory (RAM and/or VRAM)
 void UnloadModel(Model model)
 {
@@ -700,49 +619,190 @@ void UnloadModel(Model model)
     TraceLog(LOG_INFO, "Unloaded model data (mesh and material) from RAM and VRAM");
 }

-// Load material data (from file)
-Material LoadMaterial(const char *fileName)
+// Load mesh from file
+Mesh LoadMesh(const char *fileName)
 {
-    Material material = { 0 };
+    Mesh mesh = { 0 };

-#if defined(SUPPORT_FILEFORMAT_MTL)
-    if (IsFileExtension(fileName, ".mtl")) material = LoadMTL(fileName);
+#if defined(SUPPORT_FILEFORMAT_OBJ)
+    if (IsFileExtension(fileName, ".obj")) mesh = LoadOBJ(fileName);
 #else
-    TraceLog(LOG_WARNING, "[%s] Material fileformat not supported, it can't be loaded", fileName);
+    TraceLog(WARNING, "[%s] Mesh fileformat not supported, it can't be loaded", fileName);
 #endif

-    return material;
-}
-
-// Load default material (uses default models shader)
-Material LoadDefaultMaterial(void)
-{
-    Material material = { 0 };
+    if (mesh.vertexCount == 0) TraceLog(WARNING, "Mesh could not be loaded");
+    else rlLoadMesh(&mesh, false);  // Upload vertex data to GPU (static mesh)

-    material.shader = GetDefaultShader();
-    material.texDiffuse = GetDefaultTexture();      // White texture (1x1 pixel)
-    //material.texNormal;           // NOTE: By default, not set
-    //material.texSpecular;         // NOTE: By default, not set
-
-    material.colDiffuse = WHITE;    // Diffuse color
-    material.colAmbient = WHITE;    // Ambient color
-    material.colSpecular = WHITE;   // Specular color
+    // TODO: Initialize default mesh data in case loading fails, maybe a cube?

-    material.glossiness = 100.0f;   // Glossiness level
+    return mesh;
+}

-    return material;
+// Unload mesh from memory (RAM and/or VRAM)
+void UnloadMesh(Mesh *mesh)
+{
+    rlUnloadMesh(mesh);
 }

-// Unload material from memory
-kt">void UnloadMaterial(Material material)
+// Generated cuboid mesh
+n">Mesh GenMeshCube(float width, float height, float length)
 {
-    rlDeleteTextures(material.texDiffuse.id);
-    rlDeleteTextures(material.texNormal.id);
-    rlDeleteTextures(material.texSpecular.id);
+    Mesh mesh = { 0 };
+    /*
+    float vertices[] = {
+            -1.0f, -1.0f, -1.0f,  0.0f, 0.0f, -1.0f, 0.0f, 0.0f,
+            1.0f, 1.0f, -1.0f, 0.0f, 0.0f, -1.0f, 1.0f, 1.0f,
+            1.0f, -1.0f, -1.0f, 0.0f, 0.0f, -1.0f, 1.0f, 0.0f,
+            1.0f, 1.0f, -1.0f, 0.0f, 0.0f, -1.0f, 1.0f, 1.0f,
+            -1.0f, -1.0f, -1.0f, 0.0f, 0.0f, -1.0f, 0.0f, 0.0f,
+            -1.0f, 1.0f, -1.0f, 0.0f, 0.0f, -1.0f, 0.0f, 1.0f,
+            -1.0f, -1.0f, 1.0f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f,
+            1.0f, -1.0f, 1.0f, 0.0f, 0.0f, 1.0f, 1.0f, 0.0f,
+            1.0f, 1.0f, 1.0f, 0.0f, 0.0f, 1.0f, 1.0f, 1.0f,
+            1.0f, 1.0f, 1.0f, 0.0f, 0.0f, 1.0f, 1.0f, 1.0f,
+            -1.0f, 1.0f, 1.0f, 0.0f, 0.0f, 1.0f, 0.0f, 1.0f,
+            -1.0f, -1.0f, 1.0f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f,
+            -1.0f, 1.0f, 1.0f, -1.0f, 0.0f, 0.0f, 1.0f, 0.0f,
+            -1.0f, 1.0f, -1.0f, -1.0f, 0.0f, 0.0f, 1.0f, 1.0f,
+            -1.0f, -1.0f, -1.0f, -1.0f, 0.0f, 0.0f, 0.0f, 1.0f,
+            -1.0f, -1.0f, -1.0f, -1.0f, 0.0f, 0.0f, 0.0f, 1.0f,
+            -1.0f, -1.0f, 1.0f, -1.0f, 0.0f, 0.0f, 0.0f, 0.0f,
+            -1.0f, 1.0f, 1.0f, -1.0f, 0.0f, 0.0f, 1.0f, 0.0f,
+            1.0f, 1.0f, 1.0f, 1.0f, 0.0f, 0.0f, 1.0f, 0.0f,
+            1.0f, -1.0f, -1.0f, 1.0f, 0.0f, 0.0f, 0.0f, 1.0f,
+            1.0f, 1.0f, -1.0f, 1.0f, 0.0f, 0.0f, 1.0f, 1.0f,
+            1.0f, -1.0f, -1.0f, 1.0f, 0.0f, 0.0f, 0.0f, 1.0f,
+            1.0f, 1.0f, 1.0f, 1.0f, 0.0f, 0.0f, 1.0f, 0.0f,
+            1.0f, -1.0f, 1.0f, 1.0f, 0.0f, 0.0f, 0.0f, 0.0f,
+            -1.0f, -1.0f, -1.0f, 0.0f, -1.0f, 0.0f, 0.0f, 1.0f,
+            1.0f, -1.0f, -1.0f, 0.0f, -1.0f, 0.0f, 1.0f, 1.0f,
+            1.0f, -1.0f, 1.0f, 0.0f, -1.0f, 0.0f, 1.0f, 0.0f,
+            1.0f, -1.0f, 1.0f, 0.0f, -1.0f, 0.0f, 1.0f, 0.0f,
+            -1.0f, -1.0f, 1.0f, 0.0f, -1.0f, 0.0f, 0.0f, 0.0f,
+            -1.0f, -1.0f, -1.0f, 0.0f, -1.0f, 0.0f, 0.0f, 1.0f,
+            -1.0f, 1.0f, -1.0f, 0.0f, 1.0f, 0.0f, 0.0f, 1.0f,
+            1.0f, 1.0f , 1.0f, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f,
+            1.0f, 1.0f, -1.0f, 0.0f, 1.0f, 0.0f, 1.0f, 1.0f,
+            1.0f, 1.0f, 1.0f, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f,
+            -1.0f, 1.0f, -1.0f, 0.0f, 1.0f, 0.0f, 0.0f, 1.0f,
+            -1.0f, 1.0f, 1.0f, 0.0f, 1.0f, 0.0f, 0.0f, 0.0f
+        };
+    */
+    float vertices[] = {
+        -width/2, -height/2, length/2,
+        width/2, -height/2, length/2,
+        width/2, height/2, length/2,
+        -width/2, height/2, length/2,
+        -width/2, -height/2, -length/2,
+        -width/2, height/2, -length/2,
+        width/2, height/2, -length/2,
+        width/2, -height/2, -length/2,
+        -width/2, height/2, -length/2,
+        -width/2, height/2, length/2,
+        width/2, height/2, length/2,
+        width/2, height/2, -length/2,
+        -width/2, -height/2, -length/2,
+        width/2, -height/2, -length/2,
+        width/2, -height/2, length/2,
+        -width/2, -height/2, length/2,
+        width/2, -height/2, -length/2,
+        width/2, height/2, -length/2,
+        width/2, height/2, length/2,
+        width/2, -height/2, length/2,
+        -width/2, -height/2, -length/2,
+        -width/2, -height/2, length/2,
+        -width/2, height/2, length/2,
+        -width/2, height/2, -length/2
+    };
+
+    float texcoords[] = {
+        0.0f, 0.0f,
+        1.0f, 0.0f,
+        1.0f, 1.0f,
+        0.0f, 1.0f,
+        1.0f, 0.0f,
+        1.0f, 1.0f,
+        0.0f, 1.0f,
+        0.0f, 0.0f,
+        0.0f, 1.0f,
+        0.0f, 0.0f,
+        1.0f, 0.0f,
+        1.0f, 1.0f,
+        1.0f, 1.0f,
+        0.0f, 1.0f,
+        0.0f, 0.0f,
+        1.0f, 0.0f,
+        1.0f, 0.0f,
+        1.0f, 1.0f,
+        0.0f, 1.0f,
+        0.0f, 0.0f,
+        0.0f, 0.0f,
+        1.0f, 0.0f,
+        1.0f, 1.0f,
+        0.0f, 1.0f
+    };
+
+    float normals[] = {
+        0.0f, 0.0f, 1.0f,
+        0.0f, 0.0f, 1.0f,
+        0.0f, 0.0f, 1.0f,
+        0.0f, 0.0f, 1.0f,
+        0.0f, 0.0f,-1.0f,
+        0.0f, 0.0f,-1.0f,
+        0.0f, 0.0f,-1.0f,
+        0.0f, 0.0f,-1.0f,
+        0.0f, 1.0f, 0.0f,
+        0.0f, 1.0f, 0.0f,
+        0.0f, 1.0f, 0.0f,
+        0.0f, 1.0f, 0.0f,
+        0.0f,-1.0f, 0.0f,
+        0.0f,-1.0f, 0.0f,
+        0.0f,-1.0f, 0.0f,
+        0.0f,-1.0f, 0.0f,
+        1.0f, 0.0f, 0.0f,
+        1.0f, 0.0f, 0.0f,
+        1.0f, 0.0f, 0.0f,
+        1.0f, 0.0f, 0.0f,
+        -1.0f, 0.0f, 0.0f,
+        -1.0f, 0.0f, 0.0f,
+        -1.0f, 0.0f, 0.0f,
+        -1.0f, 0.0f, 0.0f
+    };
+
+    mesh.vertices = (float *)malloc(24*3*sizeof(float));
+    memcpy(mesh.vertices, vertices, 24*3*sizeof(float));
+
+    mesh.texcoords = (float *)malloc(24*2*sizeof(float));
+    memcpy(mesh.texcoords, texcoords, 24*2*sizeof(float));
+
+    mesh.normals = (float *)malloc(24*3*sizeof(float));
+    memcpy(mesh.normals, normals, 24*3*sizeof(float));
+
+    mesh.indices = (unsigned short *)malloc(36*sizeof(unsigned short));
+
+    int k = 0;
+
+    // Indices can be initialized right now
+    for (int i = 0; i < 36; i+=6)
+    {
+        mesh.indices[i] = 4*k;
+        mesh.indices[i+1] = 4*k+1;
+        mesh.indices[i+2] = 4*k+2;
+        mesh.indices[i+3] = 4*k;
+        mesh.indices[i+4] = 4*k+2;
+        mesh.indices[i+5] = 4*k+3;
+
+        k++;
+    }
+
+    mesh.vertexCount = 24;
+    mesh.triangleCount = 12;
+
+    return mesh;
 }

 // Generate a mesh from heightmap
-static Mesh GenMeshHeightmap(Image heightmap, Vector3 size)
+Mesh GenMeshHeightmap(Image heightmap, Vector3 size)
 {
     #define GRAY_VALUE(c) ((c.r+c.g+c.b)/3)

@@ -847,7 +907,7 @@ static Mesh GenMeshHeightmap(Image heightmap, Vector3 size)
     return mesh;
 }

-static Mesh GenMeshCubicmap(Image cubicmap, Vector3 cubeSize)
+Mesh GenMeshCubicmap(Image cubicmap, Vector3 cubeSize)
 {
     Mesh mesh = { 0 };

@@ -1201,6 +1261,202 @@ static Mesh GenMeshCubicmap(Image cubicmap, Vector3 cubeSize)
     return mesh;
 }

+// Load material data (from file)
+Material LoadMaterial(const char *fileName)
+{
+    Material material = { 0 };
+
+#if defined(SUPPORT_FILEFORMAT_MTL)
+    if (IsFileExtension(fileName, ".mtl")) material = LoadMTL(fileName);
+#else
+    TraceLog(WARNING, "[%s] Material fileformat not supported, it can't be loaded", fileName);
+#endif
+
+    return material;
+}
+
+// Load default material (Supports: DIFFUSE, SPECULAR, NORMAL maps)
+Material LoadMaterialDefault(void)
+{
+    Material material = { 0 };
+
+    material.shader = GetShaderDefault();
+    material.maps[TEXMAP_DIFFUSE].tex = GetTextureDefault();   // White texture (1x1 pixel)
+    //material.maps[TEXMAP_NORMAL].tex;           // NOTE: By default, not set
+    //material.maps[TEXMAP_SPECULAR].tex;         // NOTE: By default, not set
+
+    material.maps[TEXMAP_DIFFUSE].color = WHITE;    // Diffuse color
+    material.maps[TEXMAP_SPECULAR].color = WHITE;   // Specular color
+
+    return material;
+}
+
+// Load PBR material (Supports: ALBEDO, NORMAL, METALNESS, ROUGHNESS, AO, EMMISIVE, HEIGHT maps)
+Material LoadMaterialPBR(Texture2D hdr, Color albedo, float metalness, float roughness)
+{
+    Material mat = { 0 };
+
+    #define     PATH_PBR_VS     "resources/shaders/pbr.vs"              // Path to physically based rendering vertex shader
+    #define     PATH_PBR_FS     "resources/shaders/pbr.fs"              // Path to physically based rendering fragment shader
+
+    mat.shader = LoadShader(PATH_PBR_VS, PATH_PBR_FS);
+
+    // Get required locations points for PBR material
+    // NOTE: Those location names must be available and used in the shader code
+    mat.shader.locs[LOC_TEXMAP_ALBEDO] = GetShaderLocation(mat.shader, "albedo.sampler");
+    mat.shader.locs[LOC_TEXMAP_METALNESS] = GetShaderLocation(mat.shader, "metalness.sampler");
+    mat.shader.locs[LOC_TEXMAP_NORMAL] = GetShaderLocation(mat.shader, "normals.sampler");
+    mat.shader.locs[LOC_TEXMAP_ROUGHNESS] = GetShaderLocation(mat.shader, "roughness.sampler");
+    mat.shader.locs[LOC_TEXMAP_OCCUSION] = GetShaderLocation(mat.shader, "occlusion.sampler");
+    mat.shader.locs[LOC_TEXMAP_EMISSION] = GetShaderLocation(mat.shader, "emission.sampler");
+    mat.shader.locs[LOC_TEXMAP_HEIGHT] = GetShaderLocation(mat.shader, "height.sampler");
+    mat.shader.locs[LOC_TEXMAP_IRRADIANCE] = GetShaderLocation(mat.shader, "irradianceMap");
+    mat.shader.locs[LOC_TEXMAP_PREFILTER] = GetShaderLocation(mat.shader, "prefilterMap");
+    mat.shader.locs[LOC_TEXMAP_BRDF] = GetShaderLocation(mat.shader, "brdfLUT");
+
+    // Set view matrix location
+    mat.shader.locs[LOC_MATRIX_MODEL] = GetShaderLocation(mat.shader, "mMatrix");
+    mat.shader.locs[LOC_MATRIX_VIEW] = GetShaderLocation(mat.shader, "view");
+    mat.shader.locs[LOC_VECTOR_VIEW] = GetShaderLocation(mat.shader, "viewPos");
+
+    // Set up material properties color
+    mat.maps[TEXMAP_ALBEDO].color = albedo;
+    mat.maps[TEXMAP_NORMAL].color = (Color){ 128, 128, 255, 255 };
+    mat.maps[TEXMAP_METALNESS].value = metalness;
+    mat.maps[TEXMAP_ROUGHNESS].value = roughness;
+    mat.maps[TEXMAP_OCCLUSION].value = 1.0f;
+    mat.maps[TEXMAP_EMISSION].value = 0.0f;
+    mat.maps[TEXMAP_HEIGHT].value = 0.0f;
+
+    #define CUBEMAP_SIZE        1024        // Cubemap texture size
+    #define IRRADIANCE_SIZE       32        // Irradiance map from cubemap texture size
+    #define PREFILTERED_SIZE     256        // Prefiltered HDR environment map texture size
+    #define BRDF_SIZE            512        // BRDF LUT texture map size
+
+    // Set up environment materials cubemap
+    Texture2D cubemap = rlGenMapCubemap(hdr, CUBEMAP_SIZE);
+    mat.maps[TEXMAP_IRRADIANCE].tex = rlGenMapIrradiance(cubemap, IRRADIANCE_SIZE);
+    mat.maps[TEXMAP_PREFILTER].tex = rlGenMapPrefilter(cubemap, PREFILTERED_SIZE);
+    mat.maps[TEXMAP_BRDF].tex = rlGenMapBRDF(cubemap, BRDF_SIZE);
+    UnloadTexture(cubemap);
+
+    // NOTE: All maps textures are set to { 0 }
+
+    // Reset viewport dimensions to default
+    rlViewport(0, 0, GetScreenWidth(), GetScreenHeight());
+
+    return mat;
+}
+
+// Unload material from memory
+void UnloadMaterial(Material material)
+{
+    // Unload material shader
+    UnloadShader(material.shader);
+
+    // Unload loaded texture maps
+    for (int i = 0; i < MAX_MATERIAL_TEXTURE_MAPS; i++)
+    {
+        // NOTE: We already check for (tex.id > 0) inside function
+        rlDeleteTextures(material.maps[i].tex.id);
+    }
+}
+
+// Set material texture
+void SetMaterialTexture(Material *mat, int texmapType, Texture2D texture)
+{
+    mat->maps[texmapType].tex = texture;
+
+    // Update MaterialProperty use sampler state to use texture fetch instead of color attribute
+    int location = -1;
+    switch (texmapType)
+    {
+        case TEXMAP_ALBEDO:
+        {
+            location = GetShaderLocation(mat->shader, "albedo.useSampler");
+            SetShaderValuei(mat->shader, location, (int [1]){ 1 }, 1);
+        } break;
+        case TEXMAP_NORMAL:
+        {
+            location = GetShaderLocation(mat->shader, "normals.useSampler");
+            SetShaderValuei(mat->shader, location, (int [1]){ 1 }, 1);
+        } break;
+        case TEXMAP_METALNESS:
+        {
+            location = GetShaderLocation(mat->shader, "metalness.useSampler");
+            SetShaderValuei(mat->shader, location, (int [1]){ 1 }, 1);
+        } break;
+        case TEXMAP_ROUGHNESS:
+        {
+            location = GetShaderLocation(mat->shader, "roughness.useSampler");
+            SetShaderValuei(mat->shader, location, (int [1]){ 1 }, 1);
+        } break;
+        case TEXMAP_OCCLUSION:
+        {
+            location = GetShaderLocation(mat->shader, "occlusion.useSampler");
+            SetShaderValuei(mat->shader, location, (int [1]){ 1 }, 1);
+        } break;
+        case TEXMAP_EMISSION:
+        {
+            location = GetShaderLocation(mat->shader, "emission.useSampler");
+            SetShaderValuei(mat->shader, location, (int [1]){ 1 }, 1);
+        } break;
+        case TEXMAP_HEIGHT:
+        {
+            location = GetShaderLocation(mat->shader, "height.useSampler");
+            SetShaderValuei(mat->shader, location, (int [1]){ 1 }, 1);
+        } break;
+    }
+}
+
+// Unset texture from material and unload it from GPU
+void UnsetMaterialTexture(Material *mat, int texmapType)
+{
+    UnloadTexture(mat->maps[texmapType].tex);
+    mat->maps[texmapType].tex = (Texture2D){ 0 };
+
+    // Update MaterialProperty use sampler state to use texture fetch instead of color attribute
+    int location = -1;
+    switch (texmapType)
+    {
+        case TEXMAP_ALBEDO:
+        {
+            location = GetShaderLocation(mat->shader, "albedo.useSampler");
+            SetShaderValuei(mat->shader, location, (int [1]){ 0 }, 1);
+        } break;
+        case TEXMAP_NORMAL:
+        {
+            location = GetShaderLocation(mat->shader, "normals.useSampler");
+            SetShaderValuei(mat->shader, location, (int [1]){ 0 }, 1);
+        } break;
+        case TEXMAP_METALNESS:
+        {
+            location = GetShaderLocation(mat->shader, "metalness.useSampler");
+            SetShaderValuei(mat->shader, location, (int [1]){ 0 }, 1);
+        } break;
+        case TEXMAP_ROUGHNESS:
+        {
+            location = GetShaderLocation(mat->shader, "roughness.useSampler");
+            SetShaderValuei(mat->shader, location, (int [1]){ 0 }, 1);
+        } break;
+        case TEXMAP_OCCLUSION:
+        {
+            location = GetShaderLocation(mat->shader, "occlusion.useSampler");
+            SetShaderValuei(mat->shader, location, (int [1]){ 0 }, 1);
+        } break;
+        case TEXMAP_EMISSION:
+        {
+            location = GetShaderLocation(mat->shader, "emission.useSampler");
+            SetShaderValuei(mat->shader, location, (int [1]){ 0 }, 1);
+        } break;
+        case TEXMAP_HEIGHT:
+        {
+            location = GetShaderLocation(mat->shader, "height.useSampler");
+            SetShaderValuei(mat->shader, location, (int [1]){ 0 }, 1);
+        } break;
+    }
+}
+
 // Draw a model (with texture if set)
 void DrawModel(Model model, Vector3 position, float scale, Color tint)
 {
@@ -1225,9 +1481,9 @@ void DrawModelEx(Model model, Vector3 position, Vector3 rotationAxis, float rota
     //Matrix matModel = MatrixMultiply(model.transform, matTransform);    // Transform to world-space coordinates

     model.transform = MatrixMultiply(model.transform, matTransform);
-    model.material.colDiffuse = tint;       // TODO: Multiply tint color by diffuse color?
+    model.material.maps[TEXMAP_DIFFUSE].color = tint;       // TODO: Multiply tint color by diffuse color?

-    rlglDrawMesh(model.mesh, model.material, model.transform);
+    rlDrawMesh(model.mesh, model.material, model.transform);
 }

 // Draw a model wires (with texture if set)
@@ -1980,23 +2236,24 @@ static Material LoadMTL(const char *fileName)
                     case 'a':   // Ka float float float    Ambient color (RGB)
                     {
                         sscanf(buffer, "Ka %f %f %f", &color.x, &color.y, &color.z);
-                        material.colAmbient.r = (unsigned char)(color.x*255);
-                        material.colAmbient.g = (unsigned char)(color.y*255);
-                        material.colAmbient.b = (unsigned char)(color.z*255);
+                        // TODO: Support ambient color
+                        //material.colAmbient.r = (unsigned char)(color.x*255);
+                        //material.colAmbient.g = (unsigned char)(color.y*255);
+                        //material.colAmbient.b = (unsigned char)(color.z*255);
                     } break;
                     case 'd':   // Kd float float float     Diffuse color (RGB)
                     {
                         sscanf(buffer, "Kd %f %f %f", &color.x, &color.y, &color.z);
-                        material.colDiffuse.r = (unsigned char)(color.x*255);
-                        material.colDiffuse.g = (unsigned char)(color.y*255);
-                        material.colDiffuse.b = (unsigned char)(color.z*255);
+                        material.maps[TEXMAP_DIFFUSE].color.r = (unsigned char)(color.x*255);
+                        material.maps[TEXMAP_DIFFUSE].color.g = (unsigned char)(color.y*255);
+                        material.maps[TEXMAP_DIFFUSE].color.b = (unsigned char)(color.z*255);
                     } break;
                     case 's':   // Ks float float float     Specular color (RGB)
                     {
                         sscanf(buffer, "Ks %f %f %f", &color.x, &color.y, &color.z);
-                        material.colSpecular.r = (unsigned char)(color.x*255);
-                        material.colSpecular.g = (unsigned char)(color.y*255);
-                        material.colSpecular.b = (unsigned char)(color.z*255);
+                        material.maps[TEXMAP_SPECULAR].color.r = (unsigned char)(color.x*255);
+                        material.maps[TEXMAP_SPECULAR].color.g = (unsigned char)(color.y*255);
+                        material.maps[TEXMAP_SPECULAR].color.b = (unsigned char)(color.z*255);
                     } break;
                     case 'e':   // Ke float float float     Emmisive color (RGB)
                     {
@@ -2012,7 +2269,7 @@ static Material LoadMTL(const char *fileName)
                     int shininess = 0;
                     sscanf(buffer, "Ns %i", &shininess);

-                    material.glossiness = (float)shininess;
+                    o">//material.params[PARAM_GLOSSINES] = (float)shininess;
                 }
                 else if (buffer[1] == 'i')  // Ni int   Refraction index.
                 {
@@ -2028,12 +2285,12 @@ static Material LoadMTL(const char *fileName)
                         if (buffer[5] == 'd')       // map_Kd string    Diffuse color texture map.
                         {
                             result = sscanf(buffer, "map_Kd %s", mapFileName);
-                            if (result != EOF) material.texDiffuse = LoadTexture(mapFileName);
+                            if (result != EOF) material.maps[TEXMAP_DIFFUSE].tex = LoadTexture(mapFileName);
                         }
                         else if (buffer[5] == 's')  // map_Ks string    Specular color texture map.
                         {
                             result = sscanf(buffer, "map_Ks %s", mapFileName);
-                            if (result != EOF) material.texSpecular = LoadTexture(mapFileName);
+                            if (result != EOF) material.maps[TEXMAP_SPECULAR].tex = LoadTexture(mapFileName);
                         }
                         else if (buffer[5] == 'a')  // map_Ka string    Ambient color texture map.
                         {
@@ -2043,12 +2300,12 @@ static Material LoadMTL(const char *fileName)
                     case 'B':       // map_Bump string      Bump texture map.
                     {
                         result = sscanf(buffer, "map_Bump %s", mapFileName);
-                        if (result != EOF) material.texNormal = LoadTexture(mapFileName);
+                        if (result != EOF) material.maps[TEXMAP_NORMAL].tex = LoadTexture(mapFileName);
                     } break;
                     case 'b':       // map_bump string      Bump texture map.
                     {
                         result = sscanf(buffer, "map_bump %s", mapFileName);
-                        if (result != EOF) material.texNormal = LoadTexture(mapFileName);
+                        if (result != EOF) material.maps[TEXMAP_NORMAL].tex = LoadTexture(mapFileName);
                     } break;
                     case 'd':       // map_d string         Opacity texture map.
                     {
@@ -2063,7 +2320,7 @@ static Material LoadMTL(const char *fileName)
                 {
                     float alpha = 1.0f;
                     sscanf(buffer, "d %f", &alpha);
-                    material.colDiffuse.a = (unsigned char)(alpha*255);
+                    material.maps[TEXMAP_DIFFUSE].color.a = (unsigned char)(alpha*255);
                 }
                 else if (buffer[1] == 'i')  // disp string  Displacement map
                 {
@@ -2073,13 +2330,13 @@ static Material LoadMTL(const char *fileName)
             case 'b':   // bump string      Bump texture map
             {
                 result = sscanf(buffer, "bump %s", mapFileName);
-                if (result != EOF) material.texNormal = LoadTexture(mapFileName);
+                if (result != EOF) material.maps[TEXMAP_NORMAL].tex = LoadTexture(mapFileName);
             } break;
             case 'T':   // Tr float         Transparency Tr (alpha). Tr is inverse of d
             {
                 float ialpha = 0.0f;
                 sscanf(buffer, "Tr %f", &ialpha);
-                material.colDiffuse.a = (unsigned char)((1.0f - ialpha)*255);
+                material.maps[TEXMAP_DIFFUSE].color.a = (unsigned char)((1.0f - ialpha)*255);

             } break;
             case 'r':   // refl string      Reflection texture map

src/raylib.h

@@ -291,6 +291,11 @@
 #define MAGENTA    CLITERAL{ 255, 0, 255, 255 }     // Magenta
 #define RAYWHITE   CLITERAL{ 245, 245, 245, 255 }   // My own White (raylib logo)

+// Shader and material limits
+#define MAX_SHADER_LOCATIONS        32
+#define MAX_MATERIAL_TEXTURE_MAPS   12
+#define MAX_MATERIAL_PARAMS          8
+
 //----------------------------------------------------------------------------------
 // Structures Definition
 //----------------------------------------------------------------------------------
@@ -420,43 +425,24 @@ typedef struct Mesh {
     unsigned int vboId[7];  // OpenGL Vertex Buffer Objects id (7 types of vertex data)
 } Mesh;

-// Shader type (generic shader)
+// Shader type (generic)
 typedef struct Shader {
     unsigned int id;        // Shader program id
-
-    // Vertex attributes locations (default locations)
-    int vertexLoc;          // Vertex attribute location point    (default-location = 0)
-    int texcoordLoc;        // Texcoord attribute location point  (default-location = 1)
-    int texcoord2Loc;       // Texcoord2 attribute location point (default-location = 5)
-    int normalLoc;          // Normal attribute location point    (default-location = 2)
-    int tangentLoc;         // Tangent attribute location point   (default-location = 4)
-    int colorLoc;           // Color attibute location point      (default-location = 3)
-
-    // Uniform locations
-    int mvpLoc;             // ModelView-Projection matrix uniform location point (vertex shader)
-    int colDiffuseLoc;      // Diffuse color uniform location point (fragment shader)
-    int colAmbientLoc;      // Ambient color uniform location point (fragment shader)
-    int colSpecularLoc;     // Specular color uniform location point (fragment shader)
-
-    // Texture map locations (generic for any kind of map)
-    int mapTexture0Loc;     // Map texture uniform location point (default-texture-unit = 0)
-    int mapTexture1Loc;     // Map texture uniform location point (default-texture-unit = 1)
-    int mapTexture2Loc;     // Map texture uniform location point (default-texture-unit = 2)
+    int locs[MAX_SHADER_LOCATIONS];             // Initialized on LoadShader(), set to MAX_SHADER_LOCATIONS
 } Shader;

-// Material type
-typedef struct Material {
-    Shader shader;          // Standard shader (supports 3 map textures)
-
-    Texture2D texDiffuse;   // Diffuse texture  (binded to shader mapTexture0Loc)
-    Texture2D texNormal;    // Normal texture   (binded to shader mapTexture1Loc)
-    Texture2D texSpecular;  // Specular texture (binded to shader mapTexture2Loc)
+// Material texture map
+typedef struct TextureMap {
+    Texture2D tex;
+    Color color;
+    float value;
+} TextureMap;

-    Color colDiffuse;       // Diffuse color
-    Color colAmbient;       // Ambient color
-    Color colSpecular;      // Specular color
-
-    float n">glossiness;       // Glossiness level (Ranges from 0 to 1000)
+// Material type (generic)
+typedef struct Material {
+    Shader shader;
+    TextureMap maps[MAX_MATERIAL_TEXTURE_MAPS]; // Initialized on LoadMaterial*(), set to MAX_MATERIAL_TEXTURE_MAPS
+    float *params;          // Initialized on LoadMaterial*(), set to MAX_MATERIAL_PARAMS
 } Material;

 // Model type
@@ -540,6 +526,54 @@ typedef enum {
     LOG_OTHER
 } LogType;

+typedef enum {
+    LOC_VERTEX_POSITION = 0,
+    LOC_VERTEX_TEXCOORD01,
+    LOC_VERTEX_TEXCOORD02,
+    LOC_VERTEX_NORMAL,
+    LOC_VERTEX_TANGENT,
+    LOC_VERTEX_COLOR,
+    LOC_MATRIX_MVP,
+    LOC_MATRIX_MODEL,
+    LOC_MATRIX_VIEW,
+    LOC_MATRIX_PROJECTION,
+    LOC_VECTOR_VIEW,
+    LOC_COLOR_DIFFUSE,
+    LOC_COLOR_SPECULAR,
+    LOC_COLOR_AMBIENT,
+    LOC_TEXMAP_ALBEDO,          // LOC_TEXMAP_DIFFUSE
+    LOC_TEXMAP_METALNESS,       // LOC_TEXMAP_SPECULAR
+    LOC_TEXMAP_NORMAL,
+    LOC_TEXMAP_ROUGHNESS,
+    LOC_TEXMAP_OCCUSION,
+    LOC_TEXMAP_EMISSION,
+    LOC_TEXMAP_HEIGHT,
+    LOC_TEXMAP_CUBEMAP,
+    LOC_TEXMAP_IRRADIANCE,
+    LOC_TEXMAP_PREFILTER,
+    LOC_TEXMAP_BRDF
+} ShaderLocationIndex;
+
+#define LOC_TEXMAP_DIFFUSE      LOC_TEXMAP_ALBEDO
+#define LOC_TEXMAP_SPECULAR     LOC_TEXMAP_METALNESS
+
+typedef enum {
+    TEXMAP_ALBEDO    = 0,       // TEXMAP_DIFFUSE
+    TEXMAP_METALNESS = 1,       // TEXMAP_SPECULAR
+    TEXMAP_NORMAL    = 2,
+    TEXMAP_ROUGHNESS = 3,
+    TEXMAP_OCCLUSION,
+    TEXMAP_EMISSION,
+    TEXMAP_HEIGHT,
+    TEXMAP_CUBEMAP,             // NOTE: Uses GL_TEXTURE_CUBE_MAP
+    TEXMAP_IRRADIANCE,          // NOTE: Uses GL_TEXTURE_CUBE_MAP
+    TEXMAP_PREFILTER,           // NOTE: Uses GL_TEXTURE_CUBE_MAP
+    TEXMAP_BRDF
+} TexmapIndex;
+
+#define TEXMAP_DIFFUSE      TEXMAP_ALBEDO
+#define TEXMAP_SPECULAR     TEXMAP_METALNESS
+
 // Texture formats
 // NOTE: Support depends on OpenGL version and platform
 typedef enum {
@@ -944,19 +978,26 @@ RLAPI void DrawGizmo(Vector3 position);
 //------------------------------------------------------------------------------------

 // Model loading/unloading functions
+RLAPI Model LoadModel(const char *fileName);                                                            // Load model from files (mesh and material)
+RLAPI Model LoadModelFromMesh(Mesh mesh, bool dynamic);                                                // Load model from generated mesh
+RLAPI void UnloadModel(Model model);                                                                    // Unload model from memory (RAM and/or VRAM)
+
+// Mesh loading/unloading functions
 RLAPI Mesh LoadMesh(const char *fileName);                                                              // Load mesh from file
-RLAPI Mesh LoadMeshEx(int numVertex, float *vData, float *vtData, float *vnData, Color *cData);         // Load mesh from vertex data
-RLAPI Model LoadModel(const char *fileName);                                                            // Load model from file
-RLAPI Model LoadModelFromMesh(Mesh data, bool dynamic);                                                 // Load model from mesh data
-RLAPI Model LoadHeightmap(Image heightmap, Vector3 size);                                               // Load heightmap model from image data
-RLAPI Model LoadCubicmap(Image cubicmap);                                                               // Load cubes-based map model from image data
+//RLAPI void UpdateMesh(Mesh *mesh, int type, void *data);                                                // Update mesh data (CPU and GPU)
 RLAPI void UnloadMesh(Mesh *mesh);                                                                      // Unload mesh from memory (RAM and/or VRAM)
-RLAPI void UnloadModel(Model model);                                                                    // Unload model from memory (RAM and/or VRAM)
+
+RLAPI Mesh GenMeshCube(float width, float height, float length);                                        // Generate cuboid mesh
+RLAPI Mesh GenMeshHeightmap(Image heightmap, Vector3 size);                                             // Generate heightmap mesh from image data
+RLAPI Mesh GenMeshCubicmap(Image cubicmap, Vector3 cubeSize);                                           // Generate cubes-based map mesh from image data

 // Material loading/unloading functions
 RLAPI Material LoadMaterial(const char *fileName);                                                      // Load material from file
-RLAPI Material LoadDefaultMaterial(void);                                                               // Load default material (uses default models shader)
+RLAPI Material LoadMaterialDefault(void);                                                               // Load default material (Supports: DIFFUSE, SPECULAR, NORMAL maps)
+RLAPI Material LoadMaterialPBR(Texture2D cubemap, Color albedo, float metalness, float roughness);      // Load PBR material (Supports: ALBEDO, NORMAL, METALNESS, ROUGHNESS...)
 RLAPI void UnloadMaterial(Material material);                                                           // Unload material from GPU memory (VRAM)
+RLAPI void SetMaterialTexture(Material *mat, int texmapType, Texture2D texture);                        // Set material texture
+RLAPI void UnsetMaterialTexture(Material *mat, int texmapType);                                         // Unset texture from material and unload it from GPU

 // Model drawing functions
 RLAPI void DrawModel(Model model, Vector3 position, float scale, Color tint);                           // Draw a model (with texture if set)
@@ -993,8 +1034,10 @@ RLAPI char *LoadText(const char *fileName);                               // Loa
 RLAPI Shader LoadShader(char *vsFileName, char *fsFileName);              // Load shader from files and bind default locations
 RLAPI void UnloadShader(Shader shader);                                   // Unload shader from GPU memory (VRAM)

-RLAPI Shader GetDefaultShader(void);                                      // Get default shader
-RLAPI Texture2D GetDefaultTexture(void);                                  // Get default texture
+RLAPI Shader GetShaderDefault(void);                                      // Get default shader
+RLAPI Texture2D GetTextureDefault(void);                                  // Get default texture
+
+RLAPI Texture2D rlGenMapCubemap(Texture2D skyHDR, int size);              // Generate cubemap texture map from HDR texture

 // Shader configuration functions
 RLAPI int GetShaderLocation(Shader shader, const char *uniformName);              // Get shader uniform location

src/rlgl.h

@@ -145,6 +145,54 @@ typedef unsigned char byte;
     // Boolean type
     typedef enum { false, true } bool;
     #endif
+
+    typedef enum {
+        LOC_VERTEX_POSITION = 0,
+        LOC_VERTEX_TEXCOORD01,
+        LOC_VERTEX_TEXCOORD02,
+        LOC_VERTEX_NORMAL,
+        LOC_VERTEX_TANGENT,
+        LOC_VERTEX_COLOR,
+        LOC_MATRIX_MVP,
+        LOC_MATRIX_MODEL,
+        LOC_MATRIX_VIEW,
+        LOC_MATRIX_PROJECTION,
+        LOC_VECTOR_VIEW,
+        LOC_COLOR_DIFFUSE,
+        LOC_COLOR_SPECULAR,
+        LOC_COLOR_AMBIENT,
+        LOC_TEXMAP_ALBEDO,          // LOC_TEXMAP_DIFFUSE
+        LOC_TEXMAP_METALNESS,       // LOC_TEXMAP_SPECULAR
+        LOC_TEXMAP_NORMAL,
+        LOC_TEXMAP_ROUGHNESS,
+        LOC_TEXMAP_OCCUSION,
+        LOC_TEXMAP_EMISSION,
+        LOC_TEXMAP_HEIGHT,
+        LOC_TEXMAP_CUBEMAP,
+        LOC_TEXMAP_IRRADIANCE,
+        LOC_TEXMAP_PREFILTER,
+        LOC_TEXMAP_BRDF
+    } ShaderLocationIndex;
+
+    #define LOC_TEXMAP_DIFFUSE      LOC_TEXMAP_ALBEDO
+    #define LOC_TEXMAP_SPECULAR     LOC_TEXMAP_METALNESS
+
+    typedef enum {
+        TEXMAP_ALBEDO    = 0,       // TEXMAP_DIFFUSE
+        TEXMAP_METALNESS = 1,       // TEXMAP_SPECULAR
+        TEXMAP_NORMAL    = 2,
+        TEXMAP_ROUGHNESS = 3,
+        TEXMAP_OCCLUSION,
+        TEXMAP_EMISSION,
+        TEXMAP_HEIGHT,
+        TEXMAP_CUBEMAP,             // NOTE: Uses GL_TEXTURE_CUBE_MAP
+        TEXMAP_IRRADIANCE,          // NOTE: Uses GL_TEXTURE_CUBE_MAP
+        TEXMAP_PREFILTER,           // NOTE: Uses GL_TEXTURE_CUBE_MAP
+        TEXMAP_BRDF
+    } TexmapIndex;
+
+    #define TEXMAP_DIFFUSE      TEXMAP_ALBEDO
+    #define TEXMAP_SPECULAR     TEXMAP_METALNESS

     // Color type, RGBA (32bit)
     typedef struct Color {
@@ -186,44 +234,30 @@ typedef unsigned char byte;
         unsigned int vaoId;     // OpenGL Vertex Array Object id
         unsigned int vboId[7];  // OpenGL Vertex Buffer Objects id (7 types of vertex data)
     } Mesh;
-
-    // Shader type (generic shader)
+
+    // Shader and material limits
+    #define MAX_SHADER_LOCATIONS        32
+    #define MAX_MATERIAL_TEXTURE_MAPS   12
+    #define MAX_MATERIAL_PARAMS          8
+
+    // Shader type (generic)
     typedef struct Shader {
         unsigned int id;        // Shader program id
-
-        // Vertex attributes locations (default locations)
-        int vertexLoc;          // Vertex attribute location point (default-location = 0)
-        int texcoordLoc;        // Texcoord attribute location point (default-location = 1)
-        int normalLoc;          // Normal attribute location point (default-location = 2)
-        int colorLoc;           // Color attibute location point (default-location = 3)
-        int tangentLoc;         // Tangent attribute location point (default-location = 4)
-        int texcoord2Loc;       // Texcoord2 attribute location point (default-location = 5)
-
-        // Uniform locations
-        int mvpLoc;             // ModelView-Projection matrix uniform location point (vertex shader)
-        int colDiffuseLoc;       // Color uniform location point (fragment shader)
-        int colAmbientLoc;      // Ambient color uniform location point (fragment shader)
-        int colSpecularLoc;     // Specular color uniform location point (fragment shader)
-
-        // Texture map locations (generic for any kind of map)
-        int mapTexture0Loc;     // Map texture uniform location point (default-texture-unit = 0)
-        int mapTexture1Loc;     // Map texture uniform location point (default-texture-unit = 1)
-        int mapTexture2Loc;     // Map texture uniform location point (default-texture-unit = 2)
+        int locs[MAX_SHADER_LOCATIONS];     // Initialized on LoadShader(), set to MAX_SHADER_LOCATIONS
     } Shader;

-    // Material type
-    typedef struct Material {
-        Shader shader;          // Standard shader (supports 3 map types: diffuse, normal, specular)
-
-        Texture2D texDiffuse;   // Diffuse texture
-        Texture2D texNormal;    // Normal texture
-        Texture2D texSpecular;  // Specular texture
+    // Material texture map
+    typedef struct TextureMap {
+        Texture2D tex;
+        Color color;
+        float value;
+    } TextureMap;

-        Color colDiffuse;       // Diffuse color
-        Color colAmbient;       // Ambient color
-        Color colSpecular;      // Specular color
-
-        float n">glossiness;       // Glossiness level (Ranges from 0 to 1000)
+    // Material type (generic)
+    typedef struct Material {
+        Shader shader;
+        TextureMap maps[MAX_TEXTURE_MAPS];  // Initialized on LoadMaterial*(), set to MAX_TEXTURE_MAPS
+        float *params;          // Initialized on LoadMaterial*(), set to MAX_MATERIAL_PARAMS
     } Material;

     // Camera type, defines a camera position/orientation in 3d space
@@ -343,23 +377,24 @@ void rlColor4f(float x, float y, float z, float w); // Define one vertex (color)
 // Functions Declaration - OpenGL equivalent functions (common to 1.1, 3.3+, ES2)
 // NOTE: This functions are used to completely abstract raylib code from OpenGL layer
 //------------------------------------------------------------------------------------
-void rlEnableTexture(unsigned int id);          // Enable texture usage
-void rlDisableTexture(void);                    // Disable texture usage
+void rlEnableTexture(unsigned int id);                  // Enable texture usage
+void rlDisableTexture(void);                            // Disable texture usage
 void rlTextureParameters(unsigned int id, int param, int value); // Set texture parameters (filter, wrap)
-void rlEnableRenderTexture(unsigned int id);    // Enable render texture (fbo)
-void rlDisableRenderTexture(void);              // Disable render texture (fbo), return to default framebuffer
-void rlEnableDepthTest(void);                   // Enable depth test
-void rlDisableDepthTest(void);                  // Disable depth test
-void rlEnableWireMode(void);                    // Enable wire mode
-void rlDisableWireMode(void);                   // Disable wire mode
-void rlDeleteTextures(unsigned int id);         // Delete OpenGL texture from GPU
+void rlEnableRenderTexture(unsigned int id);            // Enable render texture (fbo)
+void rlDisableRenderTexture(void);                      // Disable render texture (fbo), return to default framebuffer
+void rlEnableDepthTest(void);                           // Enable depth test
+void rlDisableDepthTest(void);                          // Disable depth test
+void rlEnableWireMode(void);                            // Enable wire mode
+void rlDisableWireMode(void);                           // Disable wire mode
+void rlDeleteTextures(unsigned int id);                 // Delete OpenGL texture from GPU
 void rlDeleteRenderTextures(RenderTexture2D target);    // Delete render textures (fbo) from GPU
-void rlDeleteShader(unsigned int id);           // Delete OpenGL shader program from GPU
-void rlDeleteVertexArrays(unsigned int id);     // Unload vertex data (VAO) from GPU memory
-void rlDeleteBuffers(unsigned int id);          // Unload vertex data (VBO) from GPU memory
-void rlClearColor(byte r, byte g, byte b, byte a);  // Clear color buffer with color
-void rlClearScreenBuffers(void);                // Clear used screen buffers (color and depth)
-int rlGetVersion(void);                         // Returns current OpenGL version
+void rlDeleteShader(unsigned int id);                   // Delete OpenGL shader program from GPU
+void rlDeleteVertexArrays(unsigned int id);             // Unload vertex data (VAO) from GPU memory
+void rlDeleteBuffers(unsigned int id);                  // Unload vertex data (VBO) from GPU memory
+void rlClearColor(byte r, byte g, byte b, byte a);      // Clear color buffer with color
+void rlClearScreenBuffers(void);                        // Clear used screen buffers (color and depth)
+int rlGetVersion(void);                                 // Returns current OpenGL version
+Vector3 rlUnproject(Vector3 source, Matrix proj, Matrix view);  // Get world coordinates from screen coordinates

 //------------------------------------------------------------------------------------
 // Functions Declaration - rlgl functionality
@@ -369,24 +404,26 @@ void rlglClose(void);                           // De-init rlgl
 void rlglDraw(void);                            // Draw VAO/VBO
 void rlglLoadExtensions(void *loader);          // Load OpenGL extensions

-unsigned int rlglLoadTexture(void *data, int width, int height, int format, int mipmapCount);    // Load texture in GPU
-RenderTexture2D rlglLoadRenderTexture(int width, int height);   // Load a texture to be used for rendering (fbo with color and depth attachments)
-void rlglUpdateTexture(unsigned int id, int width, int height, int format, const void *data);         // Update GPU texture with new data
-void rlglGenerateMipmaps(Texture2D *texture);                       // Generate mipmap data for selected texture
-
-void rlglLoadMesh(Mesh *mesh, bool dynamic);                        // Upload vertex data into GPU and provided VAO/VBO ids
-void rlglUpdateMesh(Mesh mesh, int buffer, int numVertex);          // Update vertex data on GPU (upload new data to one buffer)
-void rlglDrawMesh(Mesh mesh, Material material, Matrix transform);  // Draw a 3d mesh with material and transform
-void rlglUnloadMesh(Mesh *mesh);                                    // Unload mesh data from CPU and GPU
-
-Vector3 rlglUnproject(Vector3 source, Matrix proj, Matrix view);    // Get world coordinates from screen coordinates
-
-unsigned char *rlglReadScreenPixels(int width, int height);         // Read screen pixel data (color buffer)
-void *rlglReadTexturePixels(Texture2D texture);                     // Read texture pixel data
-
-// VR functions exposed to core module but not to raylib users
-void BeginVrDrawing(void);                  // Begin VR drawing configuration
-void EndVrDrawing(void);                    // End VR drawing process (and desktop mirror)
+// Textures data management
+unsigned int rlLoadTexture(void *data, int width, int height, int format, int mipmapCount);    // Load texture in GPU
+void rlUpdateTexture(unsigned int id, int width, int height, int format, const void *data);    // Update GPU texture with new data
+void rlUnloadTexture(unsigned int id);
+void rlGenerateMipmaps(Texture2D *texture);                         // Generate mipmap data for selected texture
+void *rlReadTexturePixels(Texture2D texture);                       // Read texture pixel data
+unsigned char *rlReadScreenPixels(int width, int height);           // Read screen pixel data (color buffer)
+RenderTexture2D rlLoadRenderTexture(int width, int height);         // Load a texture to be used for rendering (fbo with color and depth attachments)
+
+// Vertex data management
+void rlLoadMesh(Mesh *mesh, bool dynamic);                          // Upload vertex data into GPU and provided VAO/VBO ids
+void rlUpdateMesh(Mesh mesh, int buffer, int numVertex);            // Update vertex data on GPU (upload new data to one buffer)
+void rlDrawMesh(Mesh mesh, Material material, Matrix transform);    // Draw a 3d mesh with material and transform
+void rlUnloadMesh(Mesh *mesh);                                      // Unload mesh data from CPU and GPU
+
+// Texture maps generation (PBR)
+Texture2D rlGenMapCubemap(Texture2D skyHDR, int size);              // Generate cubemap texture map from HDR texture
+Texture2D rlGenMapIrradiance(Texture2D cubemap, int size);          // Generate irradiance texture map
+Texture2D rlGenMapPrefilter(Texture2D cubemap, int size);           // Generate prefilter texture map
+Texture2D rlGenMapBRDF(Texture2D cubemap, int size);                // Generate BRDF texture map

 // NOTE: There is a set of shader related functions that are available to end user,
 // to avoid creating function wrappers through core module, they have been directly declared in raylib.h
@@ -396,34 +433,34 @@ void EndVrDrawing(void);                    // End VR drawing process (and deskt
 // Shaders System Functions (Module: rlgl)
 // NOTE: This functions are useless when using OpenGL 1.1
 //------------------------------------------------------------------------------------
-Shader LoadShader(char *vsFileName, char *fsFileName);              // Load a custom shader and bind default locations
-void UnloadShader(Shader shader);                                   // Unload a custom shader from memory
+Shader LoadShader(char *vsFileName, char *fsFileName);  // Load a custom shader and bind default locations
+void UnloadShader(Shader shader);                       // Unload a custom shader from memory

-Shader GetDefaultShader(void);                                      // Get default shader
-Texture2D GetDefaultTexture(void);                                  // Get default texture
+Shader GetShaderDefault(void);                          // Get default shader
+Texture2D GetTextureDefault(void);                      // Get default texture

 int GetShaderLocation(Shader shader, const char *uniformName);              // Get shader uniform location
 void SetShaderValue(Shader shader, int uniformLoc, float *value, int size); // Set shader uniform value (float)
 void SetShaderValuei(Shader shader, int uniformLoc, int *value, int size);  // Set shader uniform value (int)
 void SetShaderValueMatrix(Shader shader, int uniformLoc, Matrix mat);       // Set shader uniform value (matrix 4x4)

-void SetMatrixProjection(Matrix proj);                              // Set a custom projection matrix (replaces internal projection matrix)
-void SetMatrixModelview(Matrix view);                               // Set a custom modelview matrix (replaces internal modelview matrix)
+void SetMatrixProjection(Matrix proj);                  // Set a custom projection matrix (replaces internal projection matrix)
+void SetMatrixModelview(Matrix view);                   // Set a custom modelview matrix (replaces internal modelview matrix)

-void BeginShaderMode(Shader shader);                                // Begin custom shader drawing
-void EndShaderMode(void);                                           // End custom shader drawing (use default shader)
-void BeginBlendMode(int mode);                                      // Begin blending mode (alpha, additive, multiplied)
-void EndBlendMode(void);                                            // End blending mode (reset to default: alpha blending)
+void BeginShaderMode(Shader shader);                    // Begin custom shader drawing
+void EndShaderMode(void);                               // End custom shader drawing (use default shader)
+void BeginBlendMode(int mode);                          // Begin blending mode (alpha, additive, multiplied)
+void EndBlendMode(void);                                // End blending mode (reset to default: alpha blending)

-void TraceLog(int msgType, const char *text, ...);                  // Show trace log messages (LOG_INFO, LOG_WARNING, LOG_ERROR, LOG_DEBUG)
-float *MatrixToFloat(Matrix mat);                                   // Get float array from Matrix data
+void InitVrSimulator(int vrDevice);                     // Init VR simulator for selected device
+void CloseVrSimulator(void);                            // Close VR simulator for current device
+void UpdateVrTracking(Camera *camera);                  // Update VR tracking (position and orientation) and camera
+void ToggleVrMode(void);                                // Enable/Disable VR experience (device or simulator)
+void BeginVrDrawing(void);                              // Begin VR stereo rendering
+void EndVrDrawing(void);                                // End VR stereo rendering

-void InitVrSimulator(int vrDevice);         // Init VR simulator for selected device
-void CloseVrSimulator(void);                // Close VR simulator for current device
-void UpdateVrTracking(Camera *camera);      // Update VR tracking (position and orientation) and camera
-void ToggleVrMode(void);                    // Enable/Disable VR experience (device or simulator)
-void BeginVrDrawing(void);                  // Begin VR stereo rendering
-void EndVrDrawing(void);                    // End VR stereo rendering
+void TraceLog(int msgType, const char *text, ...);      // Show trace log messages (LOG_INFO, LOG_WARNING, LOG_ERROR, LOG_DEBUG)
+float *MatrixToFloat(Matrix mat);                       // Converts Matrix to float array
 #endif

 #ifdef __cplusplus

src/shapes.c

@@ -119,7 +119,7 @@ void DrawLineEx(Vector2 startPos, Vector2 endPos, float thick, Color color)
     float d = sqrtf(dx*dx + dy*dy);
     float angle = asinf(dy/d);

-    rlEnableTexture(GetDefaultTexture().id);
+    rlEnableTexture(GetTextureDefault().id);

     rlPushMatrix();
         rlTranslatef((float)startPos.x, (float)startPos.y, 0);
@@ -203,7 +203,7 @@ void DrawCircleV(Vector2 center, float radius, Color color)
     }
     else if ((rlGetVersion() == OPENGL_21) || (rlGetVersion() == OPENGL_33) || (rlGetVersion() == OPENGL_ES_20))
     {
-        rlEnableTexture(GetDefaultTexture().id); // Default white texture
+        rlEnableTexture(GetTextureDefault().id); // Default white texture

         rlBegin(RL_QUADS);
             for (int i = 0; i < 360; i += 20)
@@ -253,7 +253,7 @@ void DrawRectangleRec(Rectangle rec, Color color)

 void DrawRectanglePro(Rectangle rec, Vector2 origin, float rotation, Color color)
 {
-    rlEnableTexture(GetDefaultTexture().id);
+    rlEnableTexture(GetTextureDefault().id);

     rlPushMatrix();
         rlTranslatef((float)rec.x, (float)rec.y, 0);
@@ -309,7 +309,7 @@ void DrawRectangleV(Vector2 position, Vector2 size, Color color)
     }
     else if ((rlGetVersion() == OPENGL_21) || (rlGetVersion() == OPENGL_33) || (rlGetVersion() == OPENGL_ES_20))
     {
-        rlEnableTexture(GetDefaultTexture().id); // Default white texture
+        rlEnableTexture(GetTextureDefault().id); // Default white texture

         rlBegin(RL_QUADS);
             rlColor4ub(color.r, color.g, color.b, color.a);
@@ -376,7 +376,7 @@ void DrawTriangle(Vector2 v1, Vector2 v2, Vector2 v3, Color color)
     }
     else if ((rlGetVersion() == OPENGL_21) || (rlGetVersion() == OPENGL_33) || (rlGetVersion() == OPENGL_ES_20))
     {
-        rlEnableTexture(GetDefaultTexture().id); // Default white texture
+        rlEnableTexture(GetTextureDefault().id); // Default white texture

         rlBegin(RL_QUADS);
             rlColor4ub(color.r, color.g, color.b, color.a);

src/textures.c

@@ -63,8 +63,8 @@
 #include <string.h>             // Required for: strcmp(), strrchr(), strncmp()

 #include "rlgl.h"               // raylib OpenGL abstraction layer to OpenGL 1.1, 3.3 or ES2
-                                // Required for: rlglLoadTexture() rlDeleteTextures(),
-                                //      rlglGenerateMipmaps(), some funcs for DrawTexturePro()
+                                // Required for: rlLoadTexture() rlDeleteTextures(),
+                                //      rlGenerateMipmaps(), some funcs for DrawTexturePro()

 #include "utils.h"              // Required for: fopen() Android mapping

@@ -384,7 +384,7 @@ Texture2D LoadTextureFromImage(Image image)
 {
     Texture2D texture = { 0 };

-    texture.id = rlglLoadTexture(image.data, image.width, image.height, image.format, image.mipmaps);
+    texture.id = rlLoadTexture(image.data, image.width, image.height, image.format, image.mipmaps);

     texture.width = image.width;
     texture.height = image.height;
@@ -399,7 +399,7 @@ Texture2D LoadTextureFromImage(Image image)
 // Load texture for rendering (framebuffer)
 RenderTexture2D LoadRenderTexture(int width, int height)
 {
-    RenderTexture2D target = rlglLoadRenderTexture(width, height);
+    RenderTexture2D target = rlLoadRenderTexture(width, height);

     return target;
 }
@@ -416,7 +416,7 @@ void UnloadImage(Image image)
 // Unload texture from GPU memory (VRAM)
 void UnloadTexture(Texture2D texture)
 {
-    if (texture.id != 0)
+    if (texture.id > 0)
     {
         rlDeleteTextures(texture.id);

@@ -427,7 +427,7 @@ void UnloadTexture(Texture2D texture)
 // Unload render texture from GPU memory (VRAM)
 void UnloadRenderTexture(RenderTexture2D target)
 {
-    if (target.id != 0) rlDeleteRenderTextures(target);
+    if (target.id > 0) rlDeleteRenderTextures(target);
 }

 // Get pixel data from image in the form of Color struct array
@@ -525,7 +525,7 @@ Image GetTextureData(Texture2D texture)

     if (texture.format < 8)
     {
-        image.data = rlglReadTexturePixels(texture);
+        image.data = rlReadTexturePixels(texture);

         if (image.data != NULL)
         {
@@ -553,7 +553,7 @@ Image GetTextureData(Texture2D texture)
 // NOTE: pixels data must match texture.format
 void UpdateTexture(Texture2D texture, const void *pixels)
 {
-    rlglUpdateTexture(texture.id, texture.width, texture.height, texture.format, pixels);
+    rlUpdateTexture(texture.id, texture.width, texture.height, texture.format, pixels);
 }

 // Save image to a PNG file
@@ -1660,9 +1660,9 @@ void GenTextureMipmaps(Texture2D *texture)
     {
         TraceLog(LOG_WARNING, "Limited NPOT support, no mipmaps available for NPOT textures");
     }
-    else rlglGenerateMipmaps(texture);
+    else rlGenerateMipmaps(texture);
 #else
-    rlglGenerateMipmaps(texture);
+    rlGenerateMipmaps(texture);
 #endif
 }

@@ -1792,7 +1792,7 @@ void DrawTextureRec(Texture2D texture, Rectangle sourceRec, Vector2 position, Co
 void DrawTexturePro(Texture2D texture, Rectangle sourceRec, Rectangle destRec, Vector2 origin, float rotation, Color tint)
 {
     // Check if texture is valid
-    if (texture.id != 0)
+    if (texture.id > 0)
     {
         if (sourceRec.width < 0) sourceRec.x -= sourceRec.width;
         if (sourceRec.height < 0) sourceRec.y -= sourceRec.height;
