[example] Core Input Gestures for Web (#3172)
* [example] Core Input Gestures for Web * Fix Doubletap for web * Changes TAP_TIMEOUT and rgGetCurrentTime to secondspull/3178/head
ubkp
1 anno fa
committed by
GitHub
GitHub
Non sono state trovate chiavi note per questa firma nel database
ID Chiave GPG: 4AEE18F83AFDEB23
6 ha cambiato i file con 360 aggiunte e 19 eliminazioni
-
+1 -0examples/Makefile
-
+15 -11examples/Makefile.Web
-
+330 -0examples/core/core_input_gestures_web.c
-

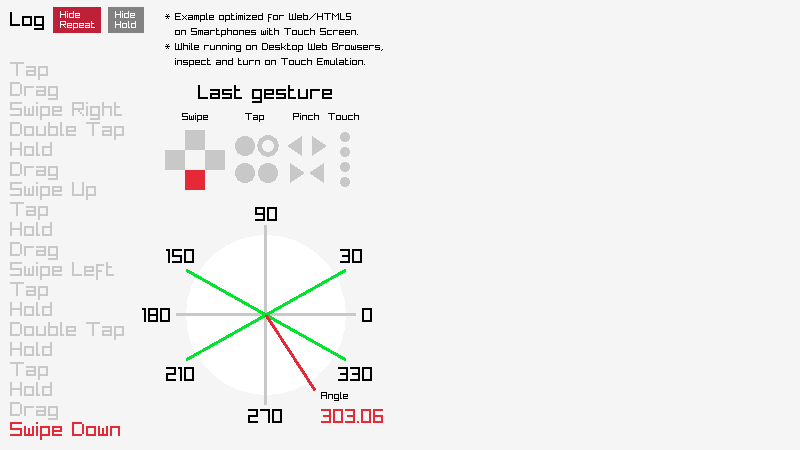

BINexamples/core/core_input_gestures_web.png
-
+6 -0src/rcore.c
-
+8 -8src/rgestures.h
+ 1
- 0
examples/Makefile
Vedi File
+ 15
- 11
examples/Makefile.Web
Vedi File
+ 330
- 0
examples/core/core_input_gestures_web.c
Vedi File
| @ -0,0 +1,330 @@ | |||
| /******************************************************************************************* | |||
| * | |||
| * raylib [core] example - Input Gestures for Web | |||
| * | |||
| * Example originally created with raylib 4.6-dev, last time updated with raylib 4.6-dev | |||
| * | |||
| * Example contributed by ubkp (@ubkp) and reviewed by Ramon Santamaria (@raysan5) | |||
| * | |||
| * Example licensed under an unmodified zlib/libpng license, which is an OSI-certified, | |||
| * BSD-like license that allows static linking with closed source software | |||
| * | |||
| * Copyright (c) 2023 ubkp (@ubkp) | |||
| * | |||
| ********************************************************************************************/ | |||
| #include "raylib.h" | |||
| #include "math.h" // Required for the protractor angle graphic drawing | |||
| #if defined(PLATFORM_WEB) | |||
| #include <emscripten/emscripten.h> // Required for the Web/HTML5 | |||
| #endif | |||
| //-------------------------------------------------------------------------------------- | |||
| // Global definitions and declarations | |||
| //-------------------------------------------------------------------------------------- | |||
| // Common variables definitions | |||
| //-------------------------------------------------------------------------------------- | |||
| int screenWidth = 800; | |||
| const int screenHeight = 450; | |||
| Vector2 messagePosition = {160, 7}; | |||
| // Last gesture variables definitions | |||
| //-------------------------------------------------------------------------------------- | |||
| int lastGesture = 0; | |||
| Vector2 lastGesturePosition = {165, 130}; | |||
| // Gesture log variables definitions and functions declarations | |||
| //-------------------------------------------------------------------------------------- | |||
| #define GESTURE_LOG_SIZE 20 | |||
| char gestureLog[GESTURE_LOG_SIZE][12] = { "" }; // The gesture log uses an array (as an inverted circular queue) to store the performed gestures | |||
| int gestureLogIndex = GESTURE_LOG_SIZE; // The index for the inverted circular queue (moving from last to first direction, then looping around) | |||
| int previousGesture = 0; | |||
| char const *GetGestureName(int i) | |||
| { | |||
| switch (i) { | |||
| case 0: return "None"; break; | |||
| case 1: return "Tap"; break; | |||
| case 2: return "Double Tap"; break; | |||
| case 4: return "Hold"; break; | |||
| case 8: return "Drag"; break; | |||
| case 16: return "Swipe Right"; break; | |||
| case 32: return "Swipe Left"; break; | |||
| case 64: return "Swipe Up"; break; | |||
| case 128: return "Swipe Down"; break; | |||
| case 256: return "Pinch In"; break; | |||
| case 512: return "Pinch Out"; break; | |||
| default: return "Unknown"; break; | |||
| } | |||
| } | |||
| Color GetGestureColor(int i) | |||
| { | |||
| switch (i) { | |||
| case 0: return BLACK; break; | |||
| case 1: return BLUE; break; | |||
| case 2: return SKYBLUE; break; | |||
| case 4: return BLACK; break; | |||
| case 8: return LIME; break; | |||
| case 16: return RED; break; | |||
| case 32: return RED; break; | |||
| case 64: return RED; break; | |||
| case 128: return RED; break; | |||
| case 256: return VIOLET; break; | |||
| case 512: return ORANGE; break; | |||
| default: return BLACK; break; | |||
| } | |||
| } | |||
| Color gestureColor = BLACK; | |||
| int logMode = 1; // Log mode values: 0 shows repeated events; 1 hides repeated events; 2 shows repeated events but hide hold events; 3 hides repeated events and hide hold events | |||
| Rectangle logButton1 = {53, 7, 48, 26}; | |||
| Rectangle logButton2 = {108, 7, 36, 26}; | |||
| Vector2 gestureLogPosition = {10, 10}; | |||
| // Protractor variables definitions | |||
| //-------------------------------------------------------------------------------------- | |||
| float angleLength = 90.0f; | |||
| float currentAngleDegrees = 0.0f; | |||
| Vector2 finalVector = {0.0f, 0.0f}; | |||
| char currentAngleStr[7] = ""; | |||
| Vector2 protractorPosition = {266.0f, 315.0f}; | |||
| // Update | |||
| //-------------------------------------------------------------------------------------- | |||
| void Update(void) | |||
| { | |||
| // Handle common | |||
| //-------------------------------------------------------------------------------------- | |||
| int i, ii; // Iterators that will be reused by all for loops | |||
| const int currentGesture = GetGestureDetected(); | |||
| const float currentDragDegrees = GetGestureDragAngle(); | |||
| const float currentPitchDegrees = GetGesturePinchAngle(); | |||
| const int touchCount = GetTouchPointCount(); | |||
| // Handle last gesture | |||
| //-------------------------------------------------------------------------------------- | |||
| if ( currentGesture != 0 && currentGesture != 4 && currentGesture != previousGesture ) lastGesture = currentGesture; // Filter the meaningful gestures (1, 2, 8 to 512) for the display | |||
| // Handle gesture log | |||
| //-------------------------------------------------------------------------------------- | |||
| if ( IsMouseButtonReleased(MOUSE_BUTTON_LEFT) ) | |||
| { | |||
| if ( CheckCollisionPointRec(GetMousePosition(), logButton1 ) ) | |||
| { | |||
| switch (logMode) | |||
| { | |||
| case 3: logMode=2; break; | |||
| case 2: logMode=3; break; | |||
| case 1: logMode=0; break; | |||
| default: logMode=1; break; | |||
| } | |||
| } | |||
| else if ( CheckCollisionPointRec(GetMousePosition(), logButton2) ) | |||
| { | |||
| switch (logMode) | |||
| { | |||
| case 3: logMode=1; break; | |||
| case 2: logMode=0; break; | |||
| case 1: logMode=3; break; | |||
| default: logMode=2; break; | |||
| } | |||
| } | |||
| } | |||
| int fillLog = 0; // Gate variable to be used to allow or not the gesture log to be filled | |||
| if (currentGesture !=0) | |||
| { | |||
| if (logMode == 3) // 3 hides repeated events and hide hold events | |||
| { | |||
| if ( ( currentGesture != 4 && currentGesture != previousGesture ) || currentGesture < 3 ) fillLog = 1; | |||
| } | |||
| else if (logMode == 2) // 2 shows repeated events but hide hold events | |||
| { | |||
| if (currentGesture != 4) fillLog = 1; | |||
| } | |||
| else if (logMode == 1) // 1 hides repeated events | |||
| { | |||
| if (currentGesture != previousGesture) fillLog = 1; | |||
| } | |||
| else // 0 shows repeated events | |||
| { | |||
| fillLog = 1; | |||
| } | |||
| } | |||
| if (fillLog) // If one of the conditions from logMode was met, fill the gesture log | |||
| { | |||
| previousGesture = currentGesture; | |||
| gestureColor = GetGestureColor(currentGesture); | |||
| if (gestureLogIndex <= 0) gestureLogIndex = GESTURE_LOG_SIZE; | |||
| gestureLogIndex--; | |||
| TextCopy( gestureLog[gestureLogIndex], GetGestureName(currentGesture) ); // Copy the gesture respective name to the gesture log array | |||
| } | |||
| // Handle protractor | |||
| //-------------------------------------------------------------------------------------- | |||
| if (currentGesture > 255) // aka Pinch In and Pinch Out | |||
| { | |||
| currentAngleDegrees = currentPitchDegrees; | |||
| } | |||
| else if (currentGesture > 15) // aka Swipe Right, Swipe Left, Swipe Up and Swipe Down | |||
| { | |||
| currentAngleDegrees = currentDragDegrees; | |||
| } | |||
| else if (currentGesture > 0) // aka Tap, Doubletap, Hold and Grab | |||
| { | |||
| currentAngleDegrees = 0.0f; | |||
| } | |||
| float currentAngleRadians = ( (currentAngleDegrees +90.0f)*PI/180 ); // Convert the current angle to Radians | |||
| finalVector = (Vector2){ ( angleLength*sinf(currentAngleRadians) ) + protractorPosition.x, ( angleLength*cosf(currentAngleRadians) ) + protractorPosition.y }; // Calculate the final vector for display | |||
| // Handle touch and mouse pointer points | |||
| //-------------------------------------------------------------------------------------- | |||
| Vector2 touchPosition[touchCount]; | |||
| Vector2 mousePosition = {0, 0}; | |||
| if (currentGesture != GESTURE_NONE) | |||
| { | |||
| if (touchCount != 0) | |||
| { | |||
| for (i = 0; i < touchCount; i++) touchPosition[i] = GetTouchPosition(i); // Fill the touch positions | |||
| } | |||
| else | |||
| { | |||
| mousePosition = GetMousePosition(); | |||
| } | |||
| } | |||
| // Draw | |||
| //-------------------------------------------------------------------------------------- | |||
| BeginDrawing(); | |||
| ClearBackground(RAYWHITE); | |||
| // Draw common | |||
| //-------------------------------------------------------------------------------------- | |||
| DrawText("*", messagePosition.x + 5, messagePosition.y + 5, 10, BLACK); | |||
| DrawText("Example optimized for Web/HTML5\non Smartphones with Touch Screen.", messagePosition.x + 15, messagePosition.y + 5, 10, BLACK); | |||
| DrawText("*", messagePosition.x + 5, messagePosition.y + 35, 10, BLACK); | |||
| DrawText("While running on Desktop Web Browsers,\ninspect and turn on Touch Emulation.", messagePosition.x + 15, messagePosition.y + 35, 10, BLACK); | |||
| // Draw last gesture | |||
| //-------------------------------------------------------------------------------------- | |||
| DrawText("Last gesture", lastGesturePosition.x + 33, lastGesturePosition.y - 47, 20, BLACK); | |||
| DrawText("Swipe Tap Pinch Touch", lastGesturePosition.x + 17, lastGesturePosition.y - 18, 10, BLACK); | |||
| DrawRectangle(lastGesturePosition.x + 20, lastGesturePosition.y, 20, 20, lastGesture == GESTURE_SWIPE_UP ? RED : LIGHTGRAY); | |||
| DrawRectangle(lastGesturePosition.x, lastGesturePosition.y + 20, 20, 20, lastGesture == GESTURE_SWIPE_LEFT ? RED : LIGHTGRAY); | |||
| DrawRectangle(lastGesturePosition.x + 40, lastGesturePosition.y + 20, 20, 20, lastGesture == GESTURE_SWIPE_RIGHT ? RED : LIGHTGRAY); | |||
| DrawRectangle(lastGesturePosition.x + 20, lastGesturePosition.y + 40, 20, 20, lastGesture == GESTURE_SWIPE_DOWN ? RED : LIGHTGRAY); | |||
| DrawCircle(lastGesturePosition.x + 80, lastGesturePosition.y + 16, 10, lastGesture == GESTURE_TAP ? BLUE : LIGHTGRAY); | |||
| DrawRing( (Vector2){lastGesturePosition.x + 103, lastGesturePosition.y + 16}, 6.0f, 11.0f, 0.0f, 360.0f, 0, lastGesture == GESTURE_DRAG ? LIME : LIGHTGRAY); | |||
| DrawCircle(lastGesturePosition.x + 80, lastGesturePosition.y + 43, 10, lastGesture == GESTURE_DOUBLETAP ? SKYBLUE : LIGHTGRAY); | |||
| DrawCircle(lastGesturePosition.x + 103, lastGesturePosition.y + 43, 10, lastGesture == GESTURE_DOUBLETAP ? SKYBLUE : LIGHTGRAY); | |||
| DrawTriangle( (Vector2){lastGesturePosition.x + 122, lastGesturePosition.y + 16}, (Vector2){lastGesturePosition.x + 137, lastGesturePosition.y + 26}, (Vector2){lastGesturePosition.x + 137, lastGesturePosition.y + 6}, lastGesture == GESTURE_PINCH_OUT ? ORANGE : LIGHTGRAY); | |||
| DrawTriangle( (Vector2){lastGesturePosition.x + 147, lastGesturePosition.y + 6}, (Vector2){lastGesturePosition.x + 147, lastGesturePosition.y + 26}, (Vector2){lastGesturePosition.x + 162, lastGesturePosition.y + 16}, lastGesture == GESTURE_PINCH_OUT ? ORANGE : LIGHTGRAY); | |||
| DrawTriangle( (Vector2){lastGesturePosition.x + 125, lastGesturePosition.y + 33}, (Vector2){lastGesturePosition.x + 125, lastGesturePosition.y + 53}, (Vector2){lastGesturePosition.x + 140, lastGesturePosition.y + 43}, lastGesture == GESTURE_PINCH_IN ? VIOLET : LIGHTGRAY); | |||
| DrawTriangle( (Vector2){lastGesturePosition.x + 144, lastGesturePosition.y + 43}, (Vector2){lastGesturePosition.x + 159, lastGesturePosition.y + 53}, (Vector2){lastGesturePosition.x + 159, lastGesturePosition.y + 33}, lastGesture == GESTURE_PINCH_IN ? VIOLET : LIGHTGRAY); | |||
| for ( i = 0; i < 4; i++ ) DrawCircle(lastGesturePosition.x + 180, lastGesturePosition.y + 7 + i*15, 5, touchCount <= i ? LIGHTGRAY : gestureColor); | |||
| // Draw gesture log | |||
| //-------------------------------------------------------------------------------------- | |||
| DrawText("Log", gestureLogPosition.x, gestureLogPosition.y, 20, BLACK); | |||
| // Loop in both directions to print the gesture log array in the inverted order (and looping around if the index started somewhere in the middle) | |||
| for (i = 0, ii = gestureLogIndex; i < GESTURE_LOG_SIZE; i++, ii = (ii + 1) % GESTURE_LOG_SIZE) DrawText(gestureLog[ii], gestureLogPosition.x, gestureLogPosition.y + 410 - i*20, 20, (i == 0 ? gestureColor : LIGHTGRAY)); | |||
| Color logButton1Color, logButton2Color; | |||
| switch (logMode) | |||
| { | |||
| case 3: logButton1Color=MAROON; logButton2Color=MAROON; break; | |||
| case 2: logButton1Color=GRAY; logButton2Color=MAROON; break; | |||
| case 1: logButton1Color=MAROON; logButton2Color=GRAY; break; | |||
| default: logButton1Color=GRAY; logButton2Color=GRAY; break; | |||
| } | |||
| DrawRectangleRec( logButton1, logButton1Color); | |||
| DrawText("Hide", logButton1.x + 7, logButton1.y + 3, 10, WHITE); | |||
| DrawText("Repeat", logButton1.x + 7, logButton1.y + 13, 10, WHITE); | |||
| DrawRectangleRec( logButton2, logButton2Color); | |||
| DrawText("Hide", logButton1.x + 62, logButton1.y + 3, 10, WHITE); | |||
| DrawText("Hold", logButton1.x + 62, logButton1.y + 13, 10, WHITE); | |||
| // Draw protractor | |||
| //-------------------------------------------------------------------------------------- | |||
| DrawText("Angle", protractorPosition.x + 55, protractorPosition.y + 76, 10, BLACK); | |||
| const char *angleString = TextFormat("%f", currentAngleDegrees); | |||
| const int angleStringDot = TextFindIndex(angleString, "."); | |||
| const char *angleStringTrim = TextSubtext(angleString, 0, angleStringDot + 3); | |||
| DrawText( angleStringTrim, protractorPosition.x + 55, protractorPosition.y + 92, 20, gestureColor); | |||
| DrawCircle(protractorPosition.x, protractorPosition.y, 80.0f, WHITE); | |||
| DrawLineEx( (Vector2){protractorPosition.x - 90, protractorPosition.y}, (Vector2){protractorPosition.x + 90, protractorPosition.y}, 3.0f, LIGHTGRAY); | |||
| DrawLineEx( (Vector2){protractorPosition.x, protractorPosition.y - 90}, (Vector2){protractorPosition.x, protractorPosition.y + 90}, 3.0f, LIGHTGRAY); | |||
| DrawLineEx( (Vector2){protractorPosition.x - 80, protractorPosition.y - 45}, (Vector2){protractorPosition.x + 80, protractorPosition.y + 45}, 3.0f, GREEN); | |||
| DrawLineEx( (Vector2){protractorPosition.x - 80, protractorPosition.y + 45}, (Vector2){protractorPosition.x + 80, protractorPosition.y - 45}, 3.0f, GREEN); | |||
| DrawText("0", protractorPosition.x + 96, protractorPosition.y - 9, 20, BLACK); | |||
| DrawText("30", protractorPosition.x + 74, protractorPosition.y - 68, 20, BLACK); | |||
| DrawText("90", protractorPosition.x - 11, protractorPosition.y - 110, 20, BLACK); | |||
| DrawText("150", protractorPosition.x - 100, protractorPosition.y - 68, 20, BLACK); | |||
| DrawText("180", protractorPosition.x - 124, protractorPosition.y - 9, 20, BLACK); | |||
| DrawText("210", protractorPosition.x - 100, protractorPosition.y + 50, 20, BLACK); | |||
| DrawText("270", protractorPosition.x - 18, protractorPosition.y + 92, 20, BLACK); | |||
| DrawText("330", protractorPosition.x + 72, protractorPosition.y + 50, 20, BLACK); | |||
| if ( currentAngleDegrees != 0.0f ) DrawLineEx( protractorPosition, finalVector, 3.0f, gestureColor); | |||
| // Draw touch and mouse pointer points | |||
| //-------------------------------------------------------------------------------------- | |||
| if (currentGesture != GESTURE_NONE) | |||
| { | |||
| if ( touchCount != 0 ) | |||
| { | |||
| for (i = 0; i < touchCount; i++) | |||
| { | |||
| DrawCircleV(touchPosition[i], 50.0f, Fade(gestureColor, 0.5f)); | |||
| DrawCircleV(touchPosition[i], 5.0f, gestureColor); | |||
| } | |||
| if (touchCount == 2) DrawLineEx( touchPosition[0], touchPosition[1], (currentGesture == 512 ? 8 : 12), gestureColor); | |||
| } | |||
| else | |||
| { | |||
| DrawCircleV(mousePosition, 35.0f, Fade(gestureColor, 0.5f)); | |||
| DrawCircleV(mousePosition, 5.0f, gestureColor); | |||
| } | |||
| } | |||
| EndDrawing(); | |||
| //-------------------------------------------------------------------------------------- | |||
| } | |||
| //------------------------------------------------------------------------------------ | |||
| // Program main entry point | |||
| //------------------------------------------------------------------------------------ | |||
| int main(void) | |||
| { | |||
| // Initialization | |||
| //-------------------------------------------------------------------------------------- | |||
| #if defined( PLATFORM_WEB ) | |||
| const int canvasWidth = EM_ASM_INT( return document.getElementById('canvas').getBoundingClientRect().width; ); // Using Emscripten EM_ASM_INT macro, get the page canvas width | |||
| if (canvasWidth > 400) | |||
| { | |||
| screenWidth = canvasWidth; | |||
| } | |||
| else | |||
| { | |||
| screenWidth = 400; // Set a minimum width for the screen | |||
| } | |||
| #endif | |||
| InitWindow(screenWidth, screenHeight, "raylib [core] example - input gestures web"); | |||
| //-------------------------------------------------------------------------------------- | |||
| // Main game loop | |||
| //-------------------------------------------------------------------------------------- | |||
| #if defined(PLATFORM_WEB) | |||
| emscripten_set_main_loop(Update, 0, 1); | |||
| #else | |||
| SetTargetFPS(60); | |||
| while (!WindowShouldClose()) Update(); // Detect window close button or ESC key | |||
| #endif | |||
| //-------------------------------------------------------------------------------------- | |||
| // De-Initialization | |||
| //-------------------------------------------------------------------------------------- | |||
| CloseWindow(); // Close window and OpenGL context | |||
| //-------------------------------------------------------------------------------------- | |||
| return 0; | |||
| } | |||
BIN
examples/core/core_input_gestures_web.png
Vedi File
| Prima | Dopo |
|---|---|
|
|
| Larghezza: 800 | Altezza: 450 | Dimensione: 8.7 KiB |
