Merge 31aea6aefd into c80726511c

examples/Makefile

@@ -558,6 +558,7 @@ SHAPES = \
     shapes/shapes_lines_bezier \
     shapes/shapes_logo_raylib \
     shapes/shapes_logo_raylib_anim \
+    shapes/shapes_math_sine_cosine \
     shapes/shapes_rectangle_advanced \
     shapes/shapes_rectangle_scaling \
     shapes/shapes_recursive_tree \

examples/Makefile.Web

@@ -558,6 +558,7 @@ SHAPES = \
     shapes/shapes_lines_bezier \
     shapes/shapes_logo_raylib \
     shapes/shapes_logo_raylib_anim \
+    shapes/shapes_math_sine_cosine \
     shapes/shapes_rectangle_advanced \
     shapes/shapes_rectangle_scaling \
     shapes/shapes_recursive_tree \
@@ -868,6 +869,9 @@ shapes/shapes_logo_raylib: shapes/shapes_logo_raylib.c
 shapes/shapes_logo_raylib_anim: shapes/shapes_logo_raylib_anim.c
 	$(CC) -o $@$(EXT) $< $(CFLAGS) $(INCLUDE_PATHS) $(LDFLAGS) $(LDLIBS) -D$(PLATFORM)

+shapes/shapes_math_sine_cosine: shapes/shapes_math_sine_cosine.c
+    $(CC) -o $@$(EXT) $< $(CFLAGS) $(INCLUDE_PATHS) $(LDFLAGS) $(LDLIBS) -D$(PLATFORM)
+
 shapes/shapes_rectangle_advanced: shapes/shapes_rectangle_advanced.c
 	$(CC) -o $@$(EXT) $< $(CFLAGS) $(INCLUDE_PATHS) $(LDFLAGS) $(LDLIBS) -D$(PLATFORM)


examples/examples_list.txt

@@ -72,6 +72,7 @@ shapes;shapes_double_pendulum;★★☆☆;5.5;5.5;2025;2025;"JoeCheong";@Joeche
 shapes;shapes_dashed_line;★☆☆☆;5.5;5.5;2025;2025;"Luís Almeida";@luis605
 shapes;shapes_triangle_strip;★★☆☆;5.6-dev;5.6-dev;2025;2025;"Jopestpe";@jopestpe
 shapes;shapes_vector_angle;★★☆☆;1.0;5.0;2023;2025;"Ramon Santamaria";@raysan5
+models;shapes_math_sine_cosine;★★★★;5.6-dev;5.6-dev;2025;2025;"Olivier";@oqu
 textures;textures_logo_raylib;★☆☆☆;1.0;1.0;2014;2025;"Ramon Santamaria";@raysan5
 textures;textures_srcrec_dstrec;★★★☆;1.3;1.3;2015;2025;"Ramon Santamaria";@raysan5
 textures;textures_image_drawing;★★☆☆;1.4;1.4;2016;2025;"Ramon Santamaria";@raysan5

examples/shapes/shapes_math_sine_cosine.c

@@ -0,0 +1,180 @@
+/*******************************************************************************************
+ *

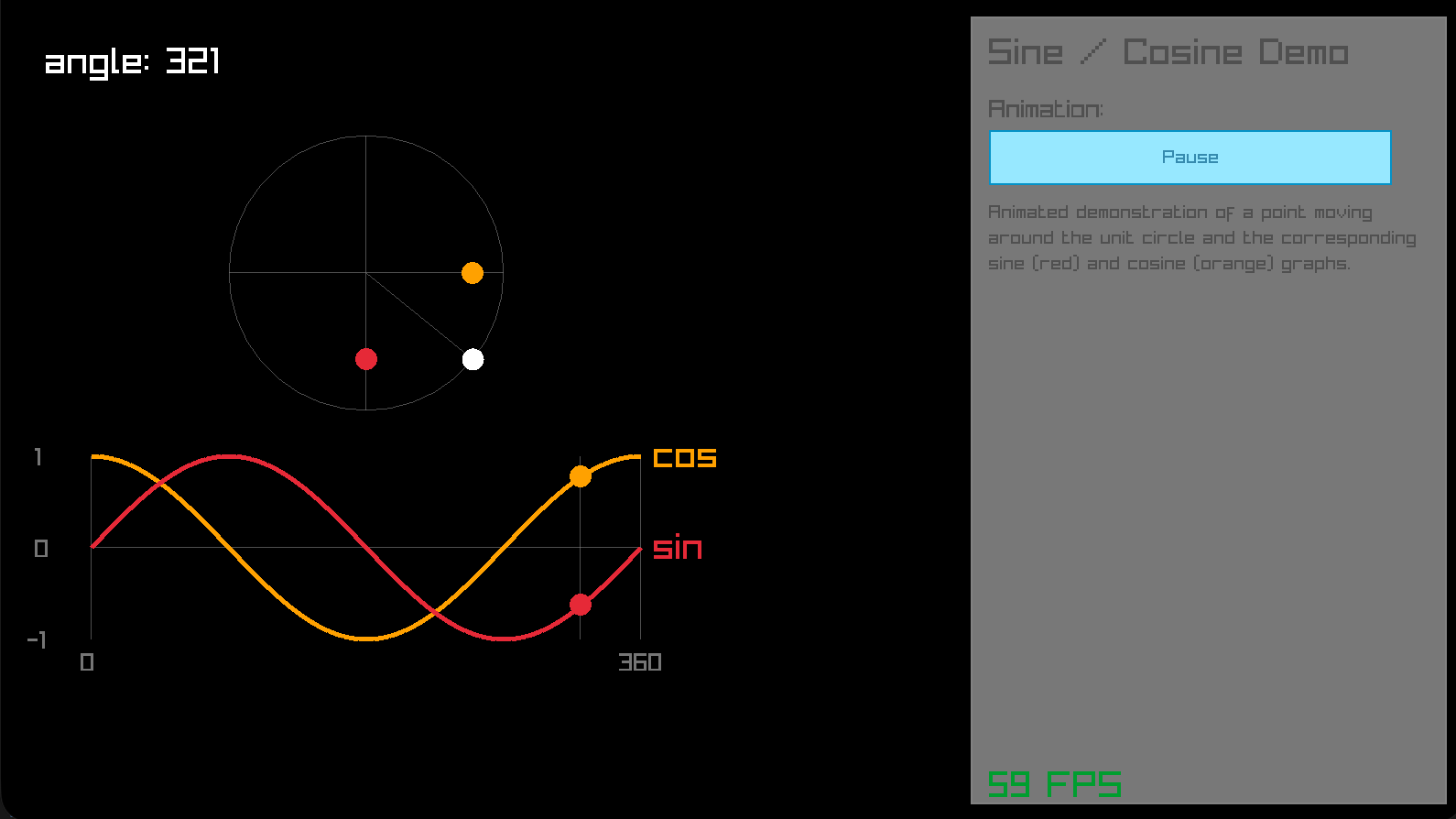

+ *   raylib [shapes] example - math sine cosine
+ *
+ *   Port of the p5.js "sine and cosine" demo to raylib + raygui
+ *   Sources: https://p5js.org/examples/angles-and-motion-sine-cosine/
+ *
+ *   Demonstrates uniform circular motion and the correspondence between
+ *   the unit circle and sine / cosine graphs. Right panel contains a
+ *   play/pause toggle implemented with raygui.
+ *
+ *   Example originally created with raylib 5.6-dev, last time updated with raylib 5.6-dev
+ *
+ *   Copyright (c) 2025 Olivier (@oqu)
+ *
+ ********************************************************************************************/
+
+#include "raylib.h"
+
+// Required for GUI controls
+#define RAYGUI_IMPLEMENTATION
+#include "raygui.h"
+
+#include <math.h>
+
+int main(void)
+{
+    // Window initialization
+    const int screenWidth = 800;
+    const int screenHeight = 450;
+
+    InitWindow(screenWidth, screenHeight, "raylib [shapes] example - math sine cosine");
+    const char* playText = "Play";
+    const char* pauseText = "Pause";
+
+    // Scene layout (mimic p5 example positioning)
+    const float circleX = 200.0f;
+    const float circleY = 150.0f;
+    const float circleRadius = 75.0f;
+
+    const float graphX = 50.0f;
+    const float graphY = 300.0f;
+    const float graphAmplitude = 50.0f;
+    const float graphPeriod = 300.0f; // width of the graph in pixels
+
+    // Animation / UI state
+    bool playing = true;     // play / pause toggle
+    int frameCountLocal = 0; // local frame counter (used when playing)
+
+    SetTargetFPS(60);
+
+    // Main loop
+    while (!WindowShouldClose())
+    {
+        // Handle GUI and input first
+        BeginDrawing();
+
+        ClearBackground(BLACK);
+
+        // Right control panel
+        float panelX = (float)GetScreenWidth() - 270.0f;
+        Rectangle panel = {panelX, 10, 260, (float)GetScreenHeight() - 20};
+        DrawRectangleRec(panel, Fade(LIGHTGRAY, 0.6f));
+        DrawRectangleLinesEx(panel, 1, GRAY);
+
+        int y = 20;
+        int px = (int)panelX + 10;
+        DrawText("Sine / Cosine Demo", px, y, 20, DARKGRAY);
+        y += 34;
+
+        // Play / Pause toggle
+        DrawText("Animation:", px, y, 14, DARKGRAY);
+        y += 18;
+        GuiToggle((Rectangle){(float)px, y, 220, 30}, playing ? pauseText : playText, &playing);
+        y += 40;
+
+        // Small description
+        DrawText("Animated demonstration of a point moving", px, y, 10, DARKGRAY);
+        y += 14;
+        DrawText("around the unit circle and the corresponding", px, y, 10, DARKGRAY);
+        y += 14;
+        DrawText("sine (red) and cosine (orange) graphs.", px, y, 10, DARKGRAY);
+        y += 30;
+
+        DrawFPS(px, GetScreenHeight() - 30);
+
+        // Update frameCount if playing
+        if (playing)
+            frameCountLocal++;
+
+        // Angle in degrees (like the p5 example)
+        int angleDeg = frameCountLocal % 360;
+
+        // Draw angle label
+        Color labelCol = WHITE;
+        DrawText(TextFormat("angle: %d", angleDeg), 25, 25, 20, labelCol);
+
+        // --- Draw circle and diameters ---
+        // circle outer
+        DrawCircleLines((int)circleX, (int)circleY, circleRadius, Fade(GRAY, 0.6f));
+        // diameters
+        DrawLine((int)circleX, (int)(circleY - circleRadius), (int)circleX, (int)(circleY + circleRadius), Fade(GRAY, 0.6f));
+        DrawLine((int)(circleX - circleRadius), (int)circleY, (int)(circleX + circleRadius), (int)circleY, Fade(GRAY, 0.6f));
+
+        // Compute moving point on circle (cos for x, sin for y). Note: cos/sin in C expect radians
+        float angRad = angleDeg * (PI / 180.0f);
+        float pointX = circleX + circleRadius * cosf(angRad);
+        float pointY = circleY - circleRadius * sinf(angRad); // minus to match p5 y-axis direction
+
+        // line from center to point
+        DrawLine((int)circleX, (int)circleY, (int)pointX, (int)pointY, Fade(GRAY, 0.6f));
+
+        // moving points
+        DrawCircleV((Vector2){pointX, pointY}, 6.0f, WHITE);
+        DrawCircle((int)pointX, (int)circleY, 6.0f, ORANGE);
+        DrawCircle((int)circleX, (int)pointY, 6.0f, RED);
+
+        // --- Draw graph area axes ---
+        // axes lines
+        DrawLine((int)graphX, (int)graphY, (int)(graphX + graphPeriod), (int)graphY, Fade(GRAY, 0.6f));
+        DrawLine((int)graphX, (int)(graphY - graphAmplitude), (int)graphX, (int)(graphY + graphAmplitude), Fade(GRAY, 0.6f));
+        DrawLine((int)(graphX + graphPeriod), (int)(graphY - graphAmplitude), (int)(graphX + graphPeriod), (int)(graphY + graphAmplitude), Fade(GRAY, 0.6f));
+
+        // labels
+        DrawText("0", (int)graphX - 6, (int)(graphY + graphAmplitude + 6), 14, Fade(GRAY, 0.9f));
+        DrawText("360", (int)(graphX + graphPeriod) - 12, (int)(graphY + graphAmplitude + 6), 14, Fade(GRAY, 0.9f));
+        DrawText("1", (int)(graphX / 2) - 6, (int)(graphY - graphAmplitude) - 6, 14, Fade(GRAY, 0.9f));
+        DrawText("0", (int)(graphX / 2) - 6, (int)(graphY)-6, 14, Fade(GRAY, 0.9f));
+        DrawText("-1", (int)(graphX / 2) - 10, (int)(graphY + graphAmplitude) - 6, 14, Fade(GRAY, 0.9f));
+
+        DrawText("cos", (int)(graphX + graphPeriod + graphX / 2) - 18, (int)(graphY - graphAmplitude) - 10, 20, ORANGE);
+        DrawText("sin", (int)(graphX + graphPeriod + graphX / 2) - 18, (int)(graphY) - 10, 20, RED);
+
+        // --- Draw cosine curve (orange) ---
+        for (int t = 0; t <= 360; t++)
+        {
+            float x = ((float)t / 360.0f) * graphPeriod + graphX;
+            float y = graphY - graphAmplitude * cosf(t * (PI / 180.0f));
+            // draw small segments between consecutive points for smoother curve
+            if (t > 0)
+            {
+                int prevT = t - 1;
+                float px = ((float)prevT / 360.0f) * graphPeriod + graphX;
+                float py = graphY - graphAmplitude * cosf(prevT * (PI / 180.0f));
+                DrawLineEx((Vector2){px, py}, (Vector2){x, y}, 2.5f, ORANGE);
+            }
+        }
+
+        // --- Draw sine curve (red) ---
+        for (int t = 0; t <= 360; t++)
+        {
+            float x = ((float)t / 360.0f) * graphPeriod + graphX;
+            float y = graphY - graphAmplitude * sinf(t * (PI / 180.0f));
+            if (t > 0)
+            {
+                int prevT = t - 1;
+                float px = ((float)prevT / 360.0f) * graphPeriod + graphX;
+                float py = graphY - graphAmplitude * sinf(prevT * (PI / 180.0f));
+                DrawLineEx((Vector2){px, py}, (Vector2){x, y}, 2.5f, RED);
+            }
+        }
+
+        // --- Draw moving vertical line on the graph corresponding to the angle ---
+        float lineX = ((float)angleDeg / 360.0f) * graphPeriod + graphX;
+        DrawLine((int)lineX, (int)(graphY - graphAmplitude), (int)lineX, (int)(graphY + graphAmplitude), Fade(GRAY, 0.6f));
+
+        // moving points on graph
+        float orangeY = graphY - graphAmplitude * cosf(angRad);
+        float redY = graphY - graphAmplitude * sinf(angRad);
+
+        DrawCircle((int)lineX, (int)orangeY, 6.0f, ORANGE);
+        DrawCircle((int)lineX, (int)redY, 6.0f, RED);
+
+        EndDrawing();
+    }
+
+    CloseWindow();
+
+    return 0;
+}
